DiodeCommunity report
Painted Ceramic Tile
white
Shared by @eoddevo on Atomm
Important safety notice
Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.
Laser Settings
Engrave · Bitmap · Flat SurfacePower
60
Speed
80
DPI
300
Passes
1
Thickness
4mm
dot time
100 µs

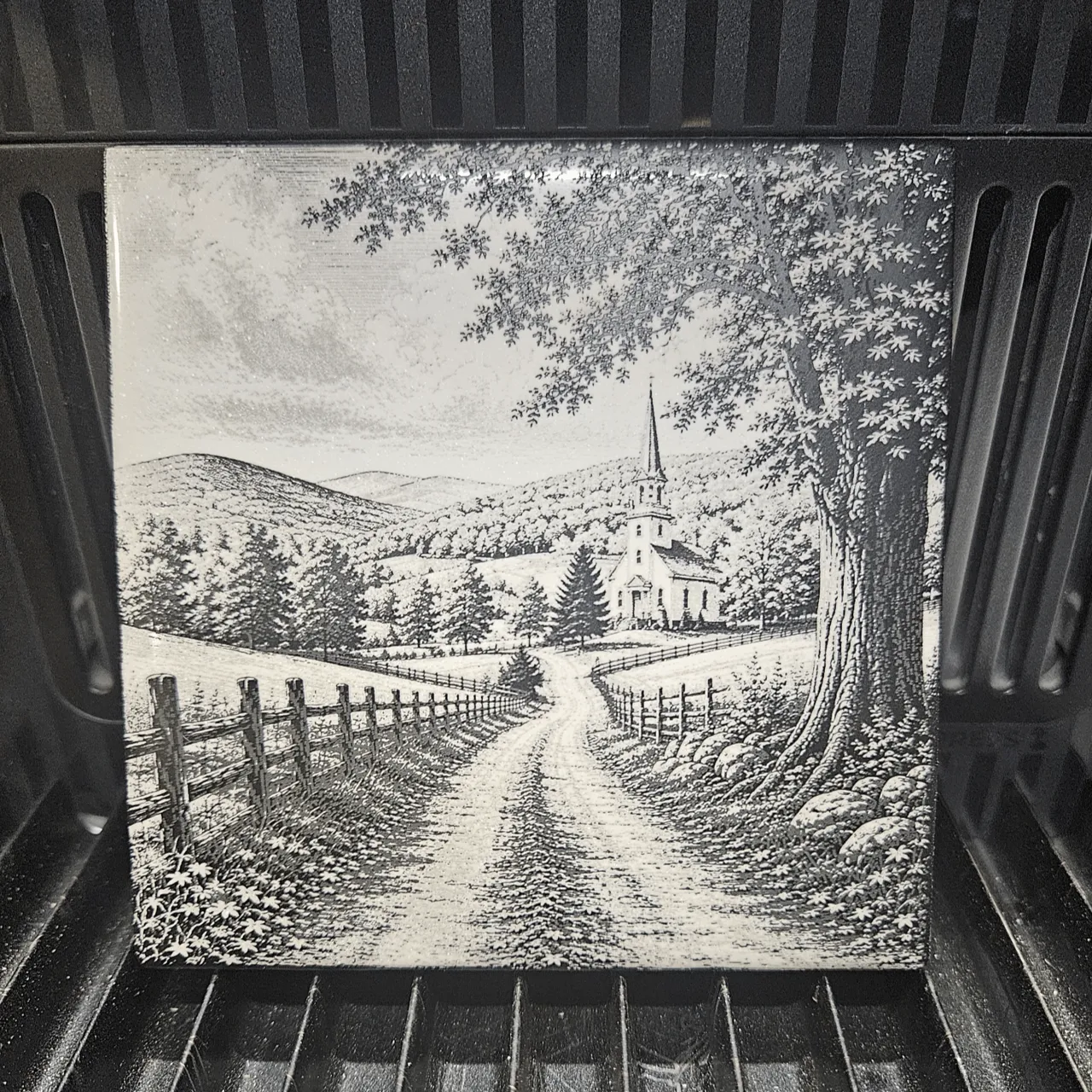

Simple ceramic subway tile painted white and then black. I use the F2 Ultra and set this image up for Jarvis processing. Key settings are a 100 dot duration, 60 power, and 300 dpi.
Community Feedback
No votes yet — be the first to report how these settings worked.
Export
xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).
Sponsored
All American Print Supply
DTF and UV printers, supplies and xTool machines.
Code FOUNDRY: 5% off, machines included
Shop AAPS →Machine Context
BrandxTool
ModelF2 Ultra
Laser typeDiode
Wattage40W
Compare against your own machine before treating these as a starting point.
Material Details
MaterialPainted Ceramic Tile
Color / Finishwhite
Size4mm
Shop machine — xTool →
Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)
Provenance
Source type
Community report
Shared by a maker in the community. Helpful for context, but not verified for every setup.
