DiodeCommunity report
opaque acrylic
red
Shared by @Leigh-Ann on Atomm
Important safety notice
Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.
Laser Settings
Cut · Vector · Flat SurfacePower
85
Speed
5
Passes
3
Thickness
3mm
M2

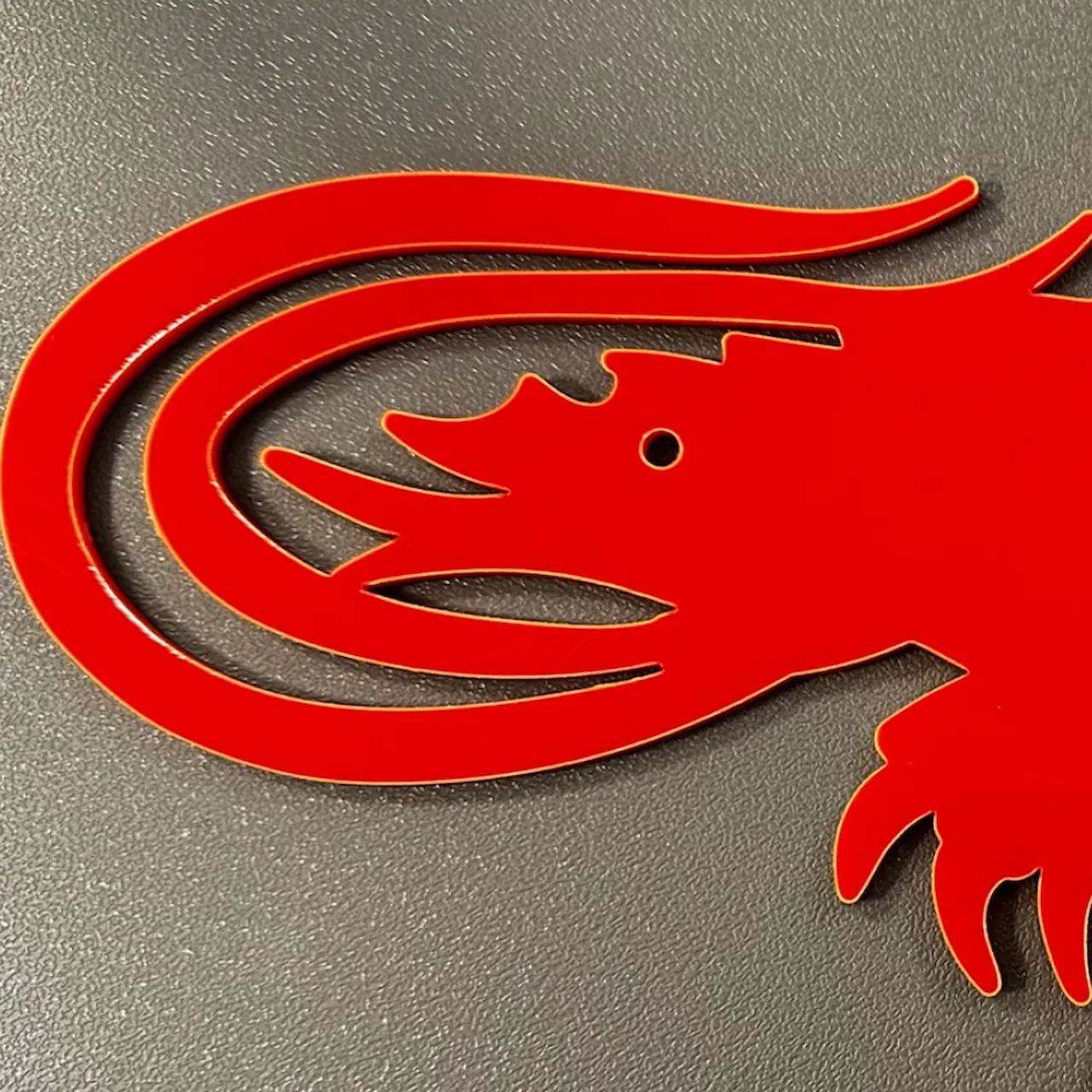

Working on two separate projects using red opaque acrylic. It's just an acrylic sheet from the local hobby store, which came with a clear plastic film. I removed the film, covered the acrylic with cheap masking tape in the area I planned to cut. Turned out beautifully with three passes.
Community Feedback
No votes yet — be the first to report how these settings worked.
Export
xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).
Sponsored
All American Print Supply
DTF and UV printers, supplies and xTool machines.
Code FOUNDRY: 5% off, machines included
Shop AAPS →Machine Context
BrandxTool
ModelM2
Laser typeDiode
Wattage20W
Compare against your own machine before treating these as a starting point.
Material Details
Materialopaque acrylic
Color / Finishred
Size3mm
Shop machine — xTool →
Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)
Provenance
Source type
Community report
Shared by a maker in the community. Helpful for context, but not verified for every setup.
