Fiber/InfraredCommunity report
Smokey Hill Designs Black Acrylic
black
Shared by @woodlordcrafts on Atomm
Important safety notice
Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.
Laser Settings
Engrave · Bitmap · Flat SurfacePower
75
Speed
80
DPI
500
Passes
1
Thickness
3mm
defocus
7 mm
dot time
150 µs

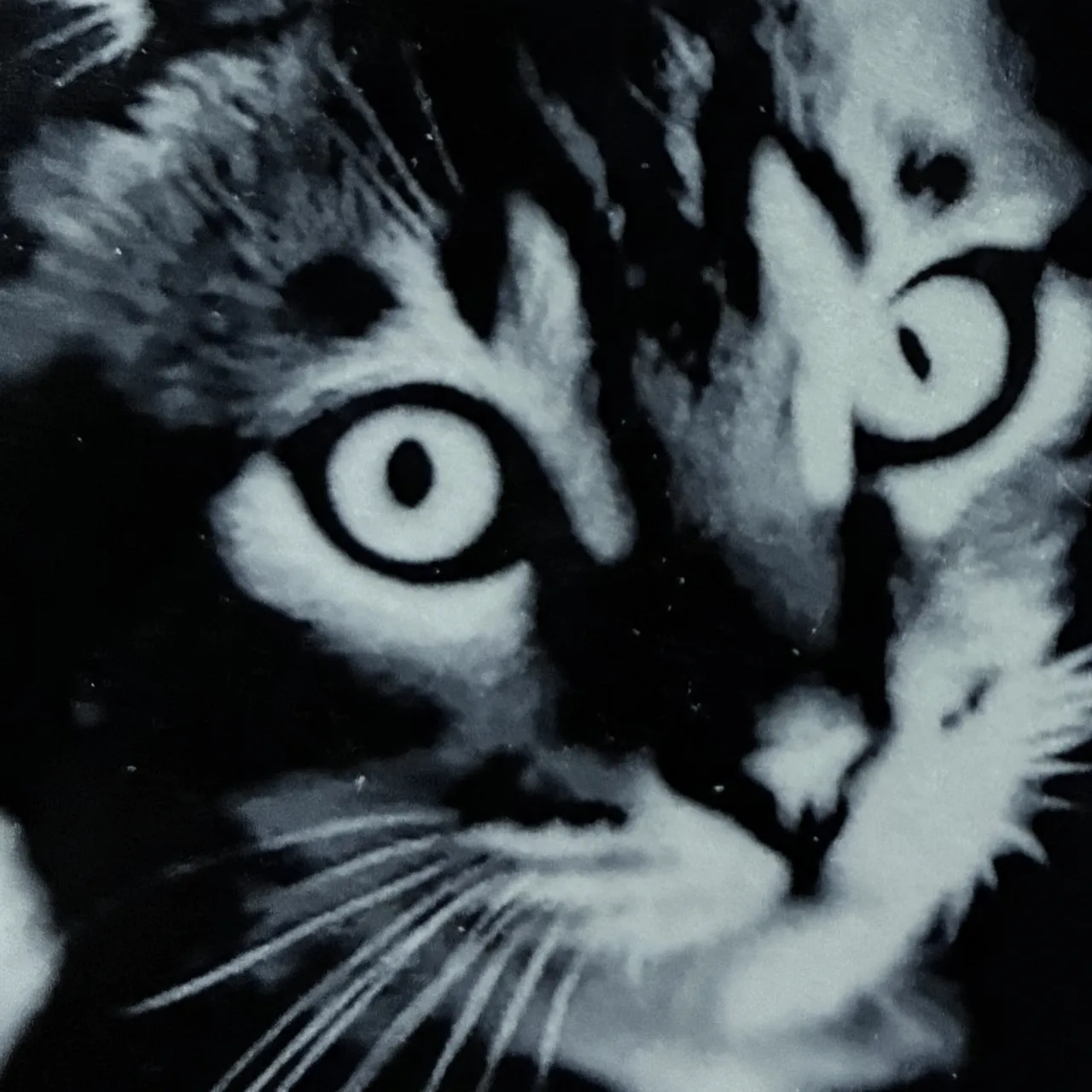

I have found that SHD Black Acrylic is perfect for photo engraves. These settings, grayscaled with tweeking of the Sharpness, Brightness and Contrast and then inverting the image will engrave a beautiful photo on the F2 using the IR
Community Feedback
No votes yet — be the first to report how these settings worked.
Export
xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).
Sponsored
All American Print Supply
DTF and UV printers, supplies and xTool machines.
Code FOUNDRY: 5% off, machines included
Shop AAPS →Machine Context
BrandxTool
ModelF2
Laser typeFiber/Infrared
Wattage5W
Compare against your own machine before treating these as a starting point.
Material Details
MaterialSmokey Hill Designs Black Acrylic
Color / Finishblack
Size3mm
