Engrave · Flat Surface 11Score · Flat Surface 5

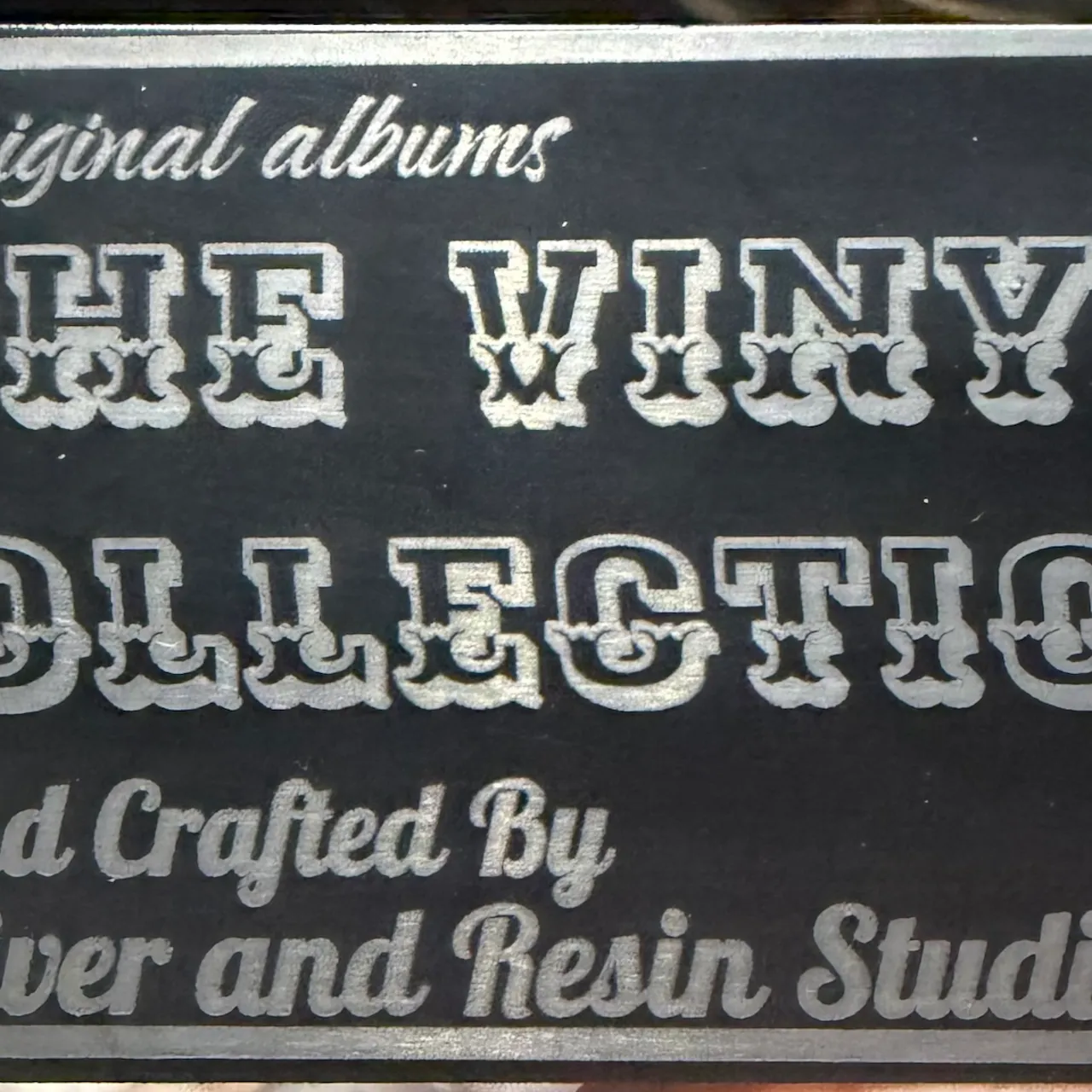

1/32"(0.8mm) Black Coated Aluminum Alloy test grid
DiodeCommunity report

1/32"(0.8mm) Black Coated Aluminum Alloy

black

Shared by @XJoeJoeX on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface
Power
66
Speed
150
LPC
200
Passes
1
Thickness
0.8mm
Black painted aluminum engraved on my D1 pro.Heat set at 66 speed at 150 with 200 lines bi-directional. I use them to identify my collections used in building river tables

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
Shop xTool lasers and UV printers

Every xTool machine in this library, with our discount code.

Code ERIK100: $100 off $1,699+ (or ERIK80: $80 off $999+)

Shop xTool →

Machine Context

BrandxTool
ModelD1 Pro
Laser typeDiode
Wattage20W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/32"(0.8mm) Black Coated Aluminum Alloy
Color / Finishblack
Size0.8mm
SupplierxTool
Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @XJoeJoeX in Atomm, xTool's community
