Cut · Flat Surface 2Engrave · Flat Surface 4Score · Flat Surface 2

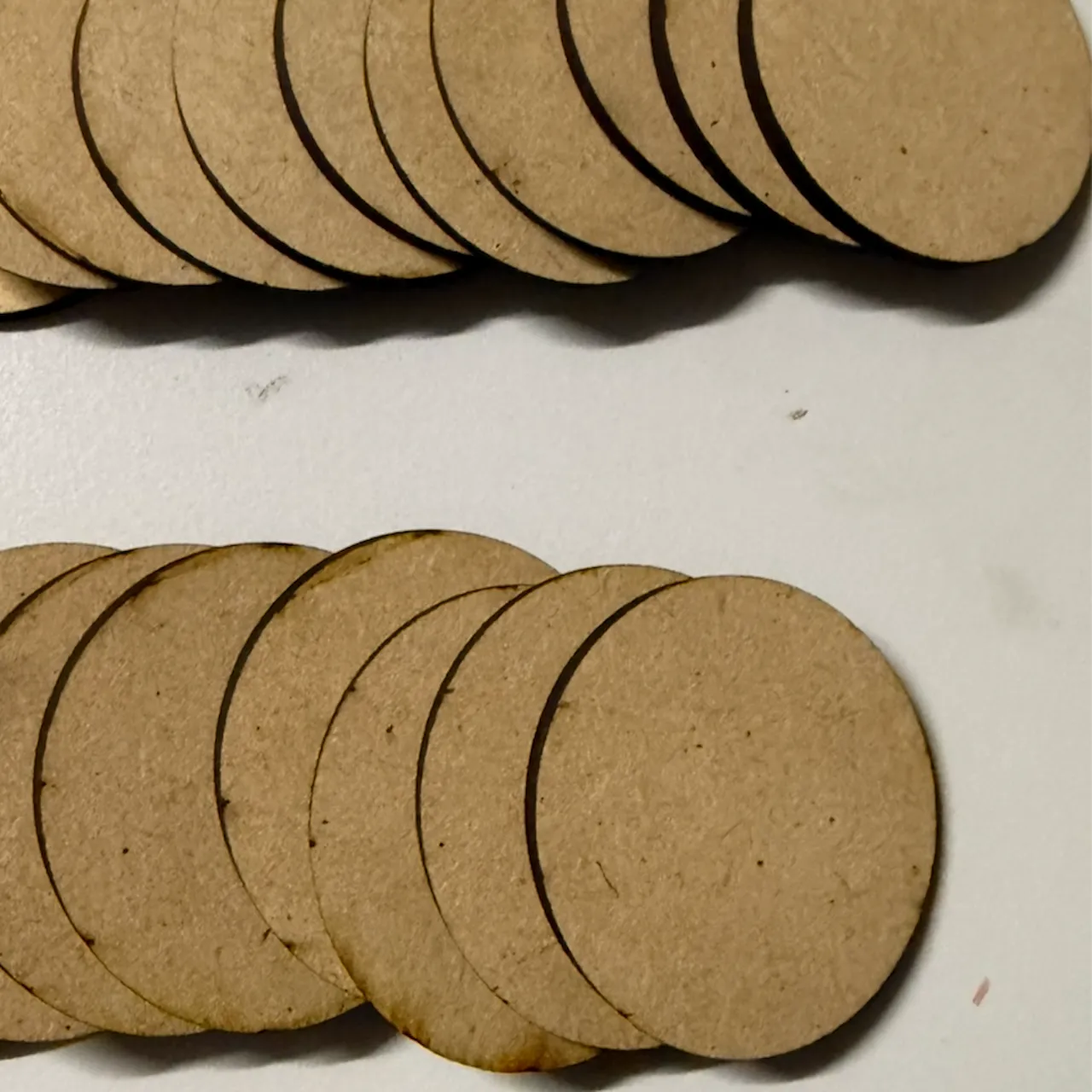

1/8"(3mm) Faux Maple MDF Board test grid
DiodeCommunity report

1/8"(3mm) Faux Maple MDF Board

Shared by @andrewsmith100522 on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Cut · Vector · Flat Surface
Power
80
Speed
30
Passes
5
Thickness
3mm
Round discs cut from a 192 × 192 mm sheet of 3 mm faux maple MDF on the xTool F2 Ultra using the 40 W blue diode module, processing on the baseplate. 80% power / 30 mm/s / 5 passes cut fully through with clean release — no tabbing needed, only light tan edge colouring and no scorch halo on the face. Air assist on, material flat on the baseplate. Run time 6m28s for the full array. If your sheet runs thick or the lens needs a clean, drop to 25 mm/s or add a sixth pass.

More 1/8"(3mm) Faux Maple MDF Board settings

Same material on xTool F2 Ultra. Engrave stays the same regardless of thickness; cut changes with thickness.

Cut by thickness
3mm · P80 S30 · this one3mm · P90 S30

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
Shop xTool lasers and UV printers

Every xTool machine in this library, with our discount code.

Code ERIK100: $100 off $1,699+ (or ERIK80: $80 off $999+)

Shop xTool →

Machine Context

BrandxTool
ModelF2 Ultra
Laser typeDiode
Wattage40W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/8"(3mm) Faux Maple MDF Board
Size3mm
SupplierxTool
Buy this material →
Buy from xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @andrewsmith100522 in Atomm, xTool's community
