White Cardstock Paper-6.8oz(230g) test grid
UVCommunity report

White Cardstock Paper-6.8oz(230g)

green

Shared by @benjamindickman83 on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Bitmap · Flat Surface
Power
45
Speed
80
DPI
275
Passes
1
dot time
250 µs

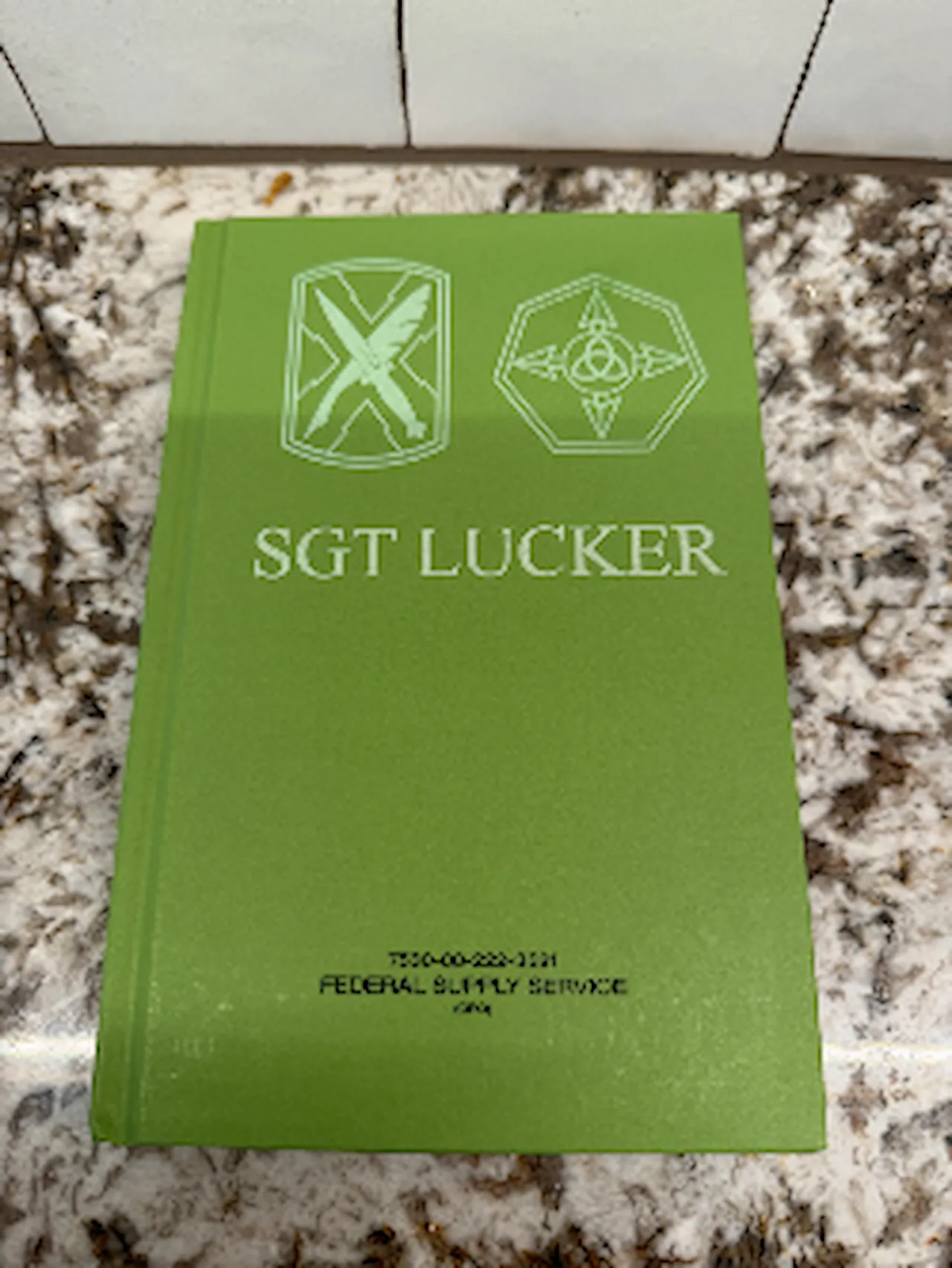

This was engraved on the Military Green Book, which is commonly issued to U.S. military members. I tried using a preset White card stock but adjusted the settings to get a better image. I hope this helps! Settings Images: Dot 250. Power 40-50. DPI 275. Pass 1. Freq. 50. Greyscale. Bi-Directional Text: Power 45. Speed 1000. Pass 1. Lines per cm 250. Freq 40. Bi-Directional

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Shop AAPS →

Machine Context

BrandxTool
ModelF2 Ultra UV
Laser typeUV
Wattage5W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialWhite Cardstock Paper-6.8oz(230g)
Color / Finishgreen
SupplierxTool
