Kraft Paper-7oz(250g) test grid
DiodeCommunity report

Kraft Paper-7oz(250g)

orange

Shared by @Convertiwop Creation on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Bitmap · Flat Surface
Power
32
Speed
80
DPI
400
Passes
1
Thickness
0.2mm
dot time
80 µs

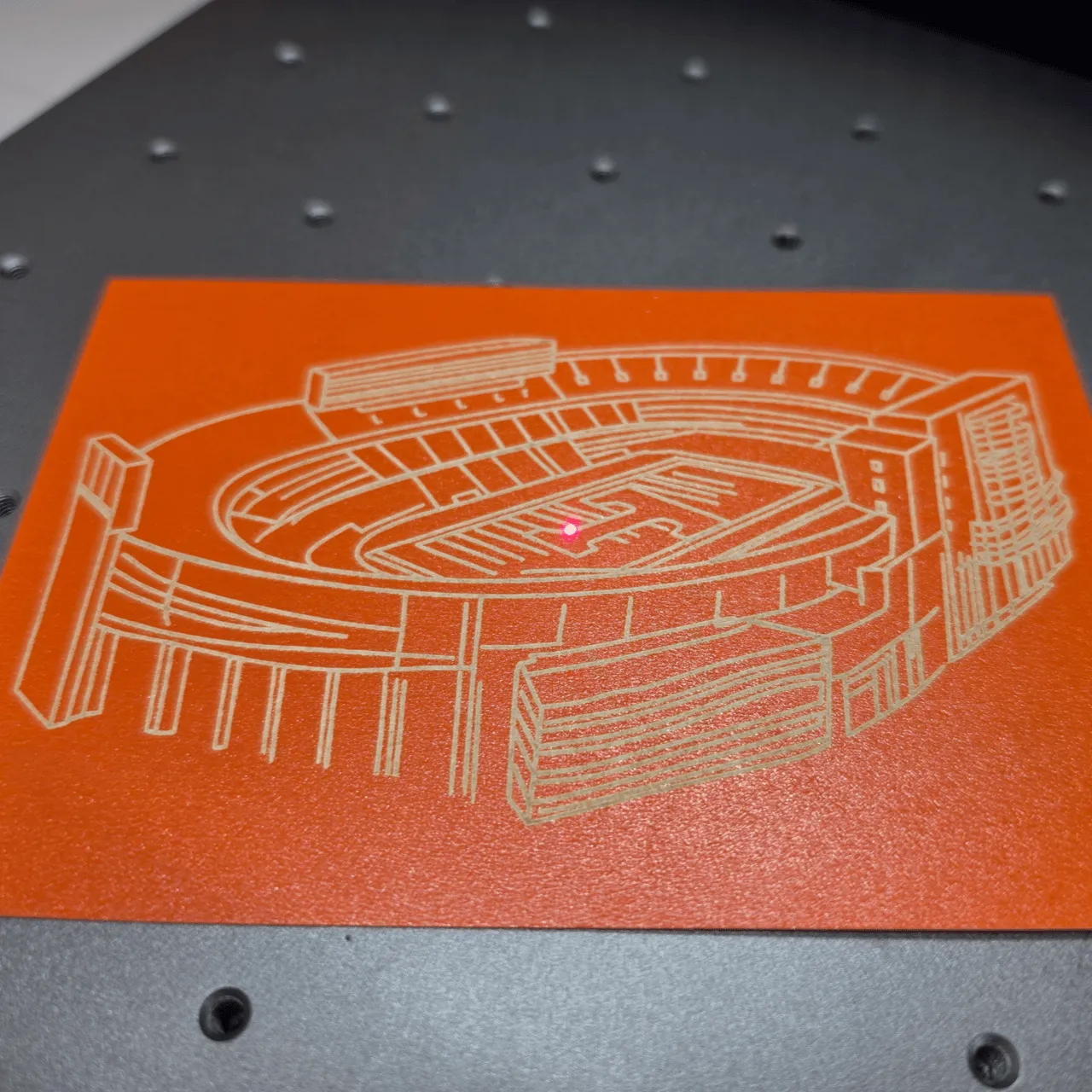

Line art of Neyland Stadium. Home of the Tennessee Volunteers

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Shop AAPS →

Machine Context

BrandxTool
ModelF2 Ultra
Laser typeDiode
Wattage40W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialKraft Paper-7oz(250g)
Color / Finishorange
Size0.2mm
SupplierxTool
Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @Convertiwop Creation in Atomm, xTool's community
