13/64"(5mm,Ga.6) ASTM-A36 Carbon Steel
Shared by @rustyamanda035 on Atomm
Important safety notice
Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.
Laser Settings
Engrave · Vector · Flat SurfacePower
100
Speed
40
LPC
300
Passes
2
Thickness
5mm

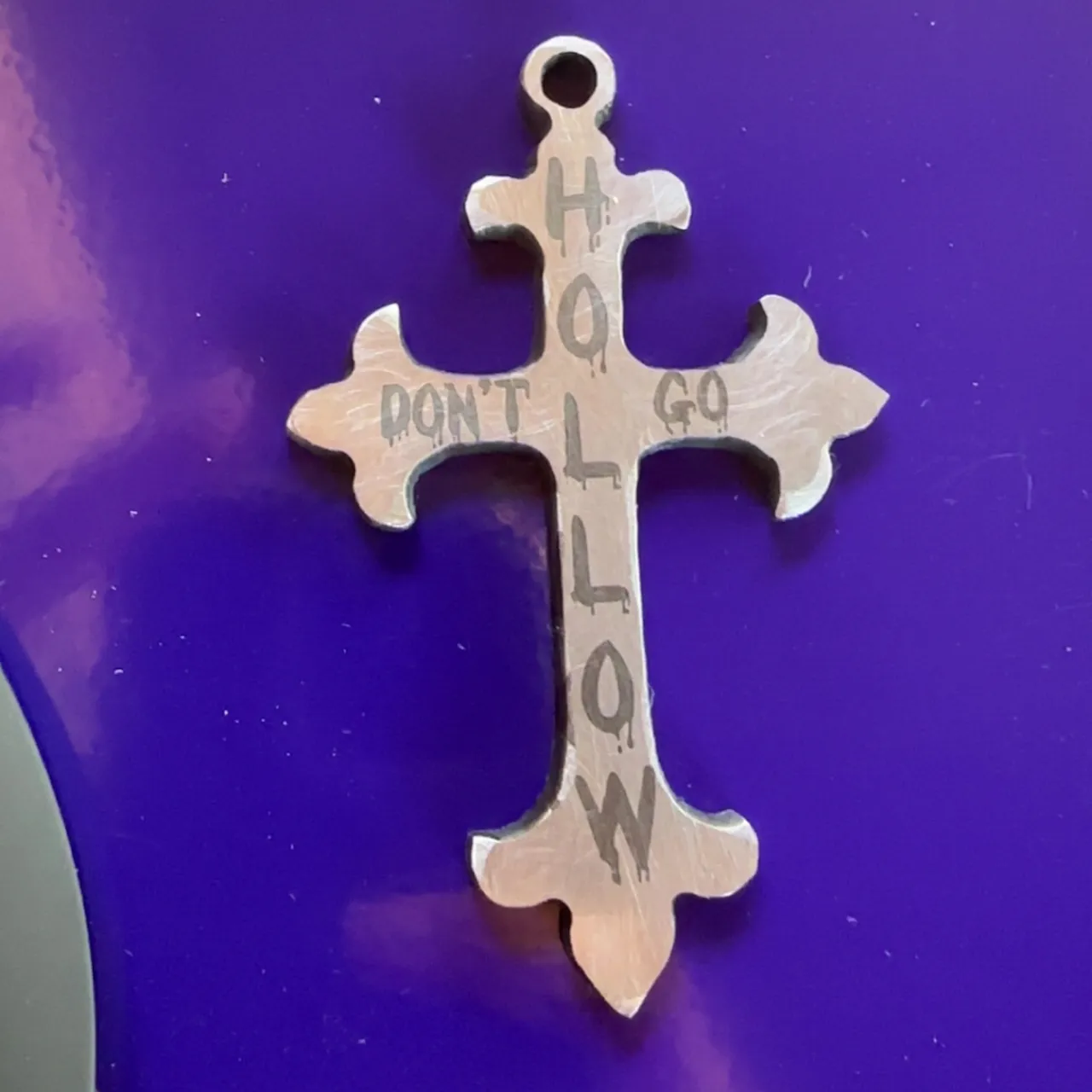

I had a metal cross that I cut out of 10 gauge carbon steel. I used the settings listed and this is how it came out. I did have to sand down the metal to give it a smooth flat surface to make sure the middle text stayed centered.
Community Feedback
No votes yet — be the first to report how these settings worked.
Export
xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).
Sponsored
All American Print Supply
DTF and UV printers, supplies and xTool machines.
Code FOUNDRY: 5% off, machines included
Shop AAPS →Machine Context
BrandxTool
ModelM2
Laser typeFiber/Infrared
Wattage3W
Compare against your own machine before treating these as a starting point.
Material Details
Material13/64"(5mm,Ga.6) ASTM-A36 Carbon Steel
Brand10 gauge steel
Size5mm
SupplierxTool
