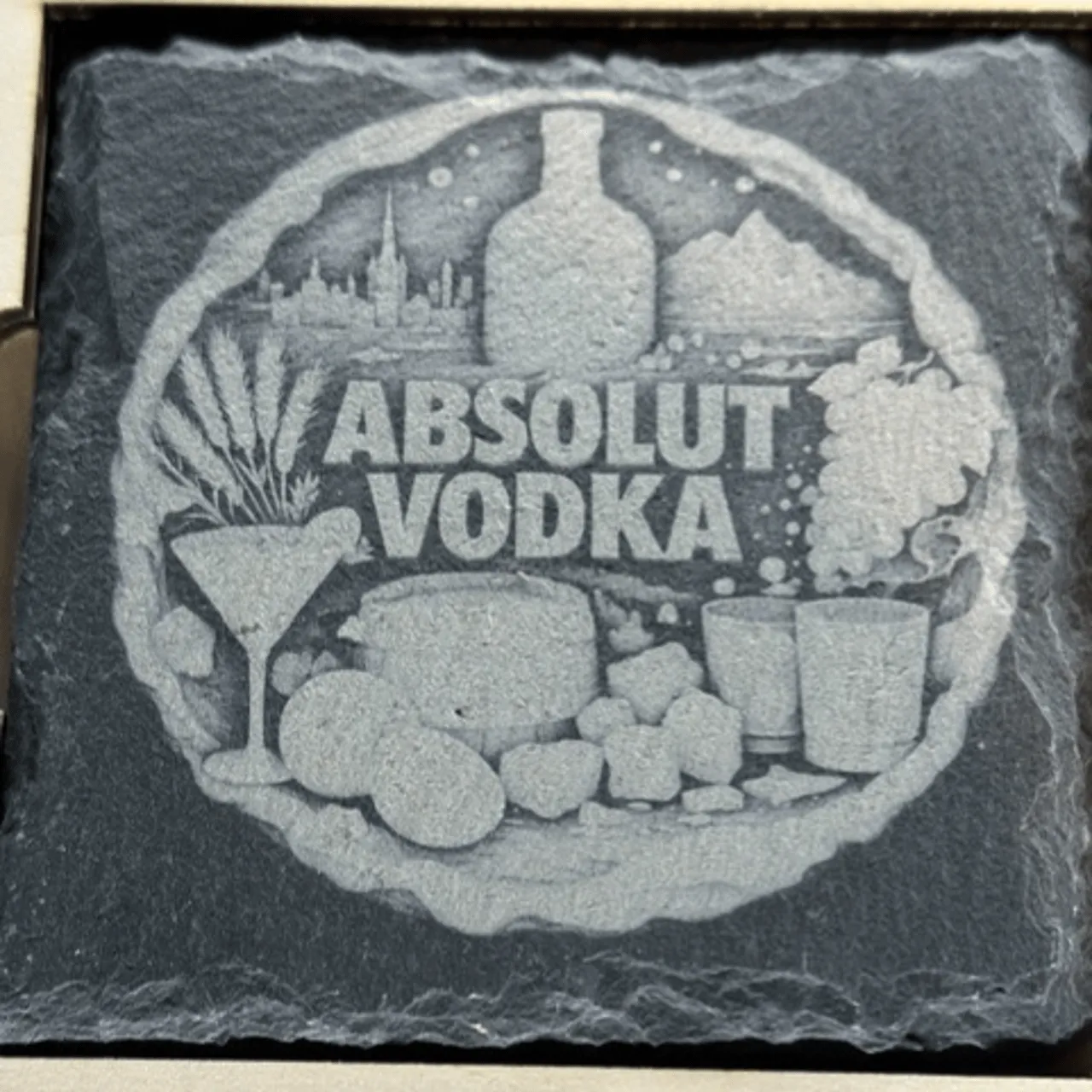

Square Rock Coaster test grid

DiodeCommunity report

Square Rock Coaster

black

Shared by @sayersmichael8 on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Bitmap · Flat Surface

Power

40

Speed

220

LPC

150

Passes

1

Thickness

5mm

First made a 4 coaster placement jig then used 1 off black slate coasters in jig positioned image and resized to suit coaster, Auto setup hight of lazer run process and checked results fond to be a little faint so carried out a second process ok now, removed, cleaned and washed coaster, I am very happy with results.

More Square Rock Coaster settings

Same material on xTool S1. Engrave stays the same regardless of thickness; cut changes with thickness.

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Shop xTool lasers and UV printers

Every xTool machine in this library, with our discount code.

Code ERIK100: $100 off $1,699+ (or ERIK80: $80 off $999+)

Machine Context

BrandxTool

ModelS1

Laser typeDiode

Wattage20W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialSquare Rock Coaster

Color / Finishblack

Size5mm

SupplierxTool

Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type

Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @sayersmichael8 in Atomm, xTool's community
