1/8"(3mm) Birch Plywood test grid

CO2Community report

1/8"(3mm) Birch Plywood

Shared by @max.mulvey1 on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface

Power

49

Speed

402

LPC

100

Passes

1

Thickness

5.2mm

defocus

8 mm

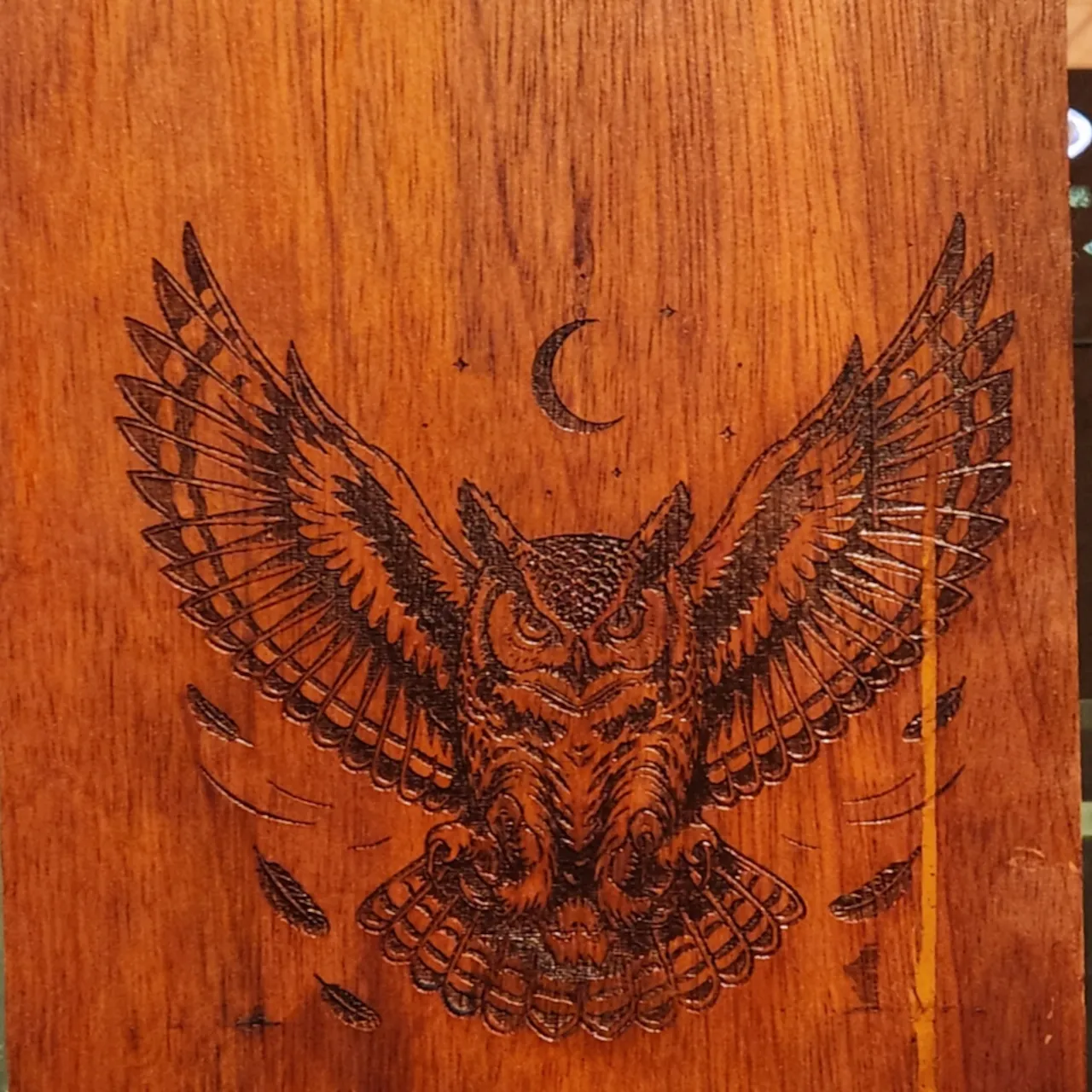

Sticker says 5.2 mm luan, it's a cutoff. Covered it with painter's tape and there are a couple of scorches on the tail, center. used an orange wood dye with water. power 50, speed 400.

More 1/8"(3mm) Birch Plywood settings

Same material on xTool P2. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

5.2mm · P49 S402 · this one5.2mm · P51 S300 3mm · P35 S160 3mm · P15 S300

Cut by thickness

3mm · P75 S22 3mm · P90 S25

Score

3mm · P20 S200 3mm · P15 S150

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Shop xTool lasers and UV printers

Every xTool machine in this library, with our discount code.

Code ERIK100: $100 off $1,699+ (or ERIK80: $80 off $999+)

Machine Context

BrandxTool

ModelP2

Laser typeCO2

Wattage55W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/8"(3mm) Birch Plywood

Brandlowes

Size5.2mm

SupplierxTool
