Cut · Flat Surface 2Engrave · Flat Surface 4Score · Flat Surface 2

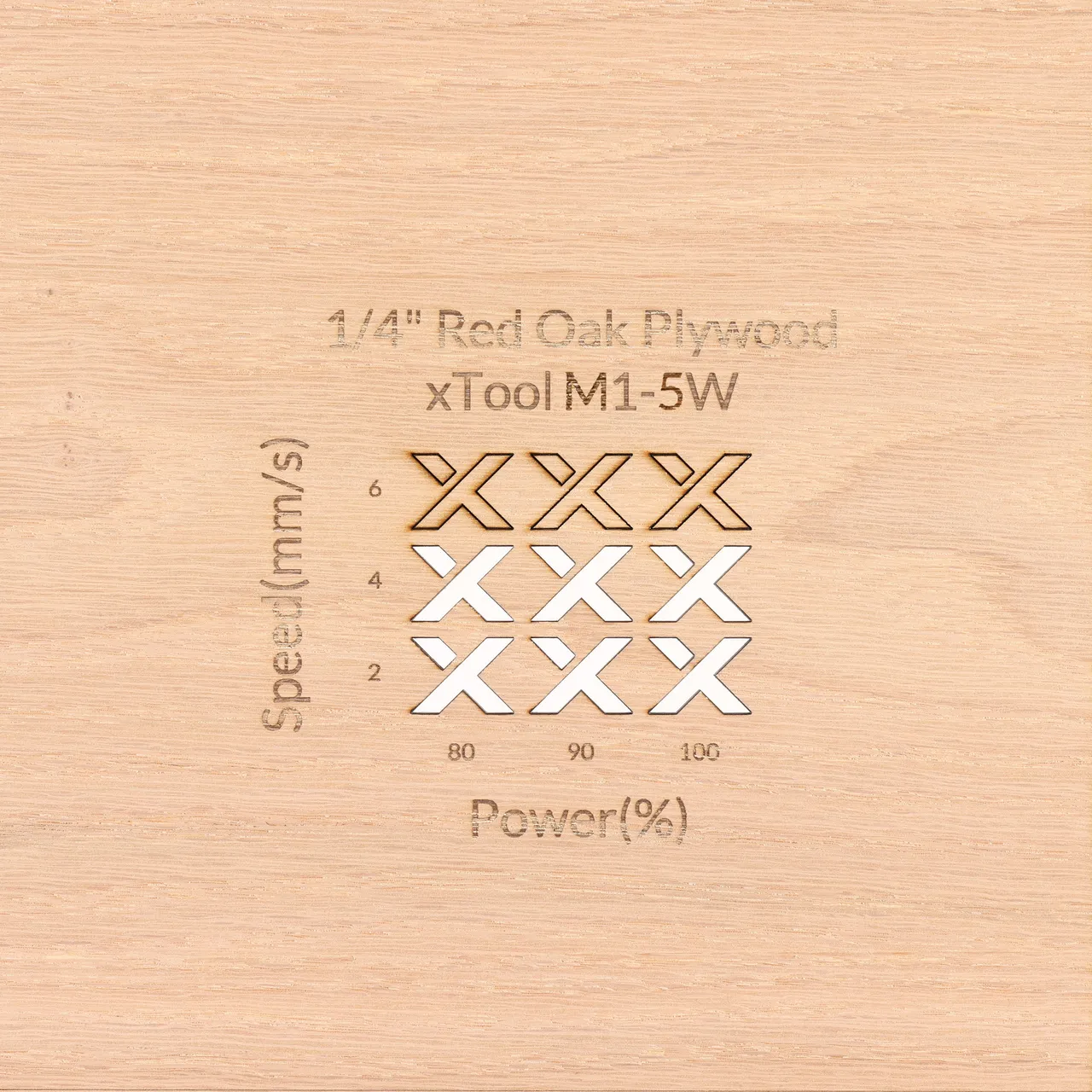

1/4"(6mm) Red Oak Plywood test grid
DiodeVendor

1/4"(6mm) Red Oak Plywood

Shared by xTool (vendor)

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Cut · Vector · Flat Surface
Power
100
Speed
4
Passes
3
Thickness
6mm

More 1/4"(6mm) Red Oak Plywood settings

Same material on xTool M1. Engrave stays the same regardless of thickness; cut changes with thickness.

Cut by thickness
6mm · P100 S4 · this one6mm · P90 S6

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Shop AAPS →

Machine Context

BrandxTool
ModelM1
Also works inPass-Through
Laser typeDiode
Wattage5W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/4"(6mm) Red Oak Plywood
BrandxTool
Size6mm
SupplierxTool
Buy this material →
Buy from xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Vendor

Shared from a supplier or manufacturer reference. Useful for context, but not proof it will match your machine or material.

Source

xTool material library

xTool's tested settings, shared here with xTool's permission.
