Black Stylus Ballpoint Pens With LED Light test grid
DiodeCommunity report

Black Stylus Ballpoint Pens With LED Light

Shared by @markscreations1960 on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface
Power
45
Speed
80
LPC
200
Passes
1

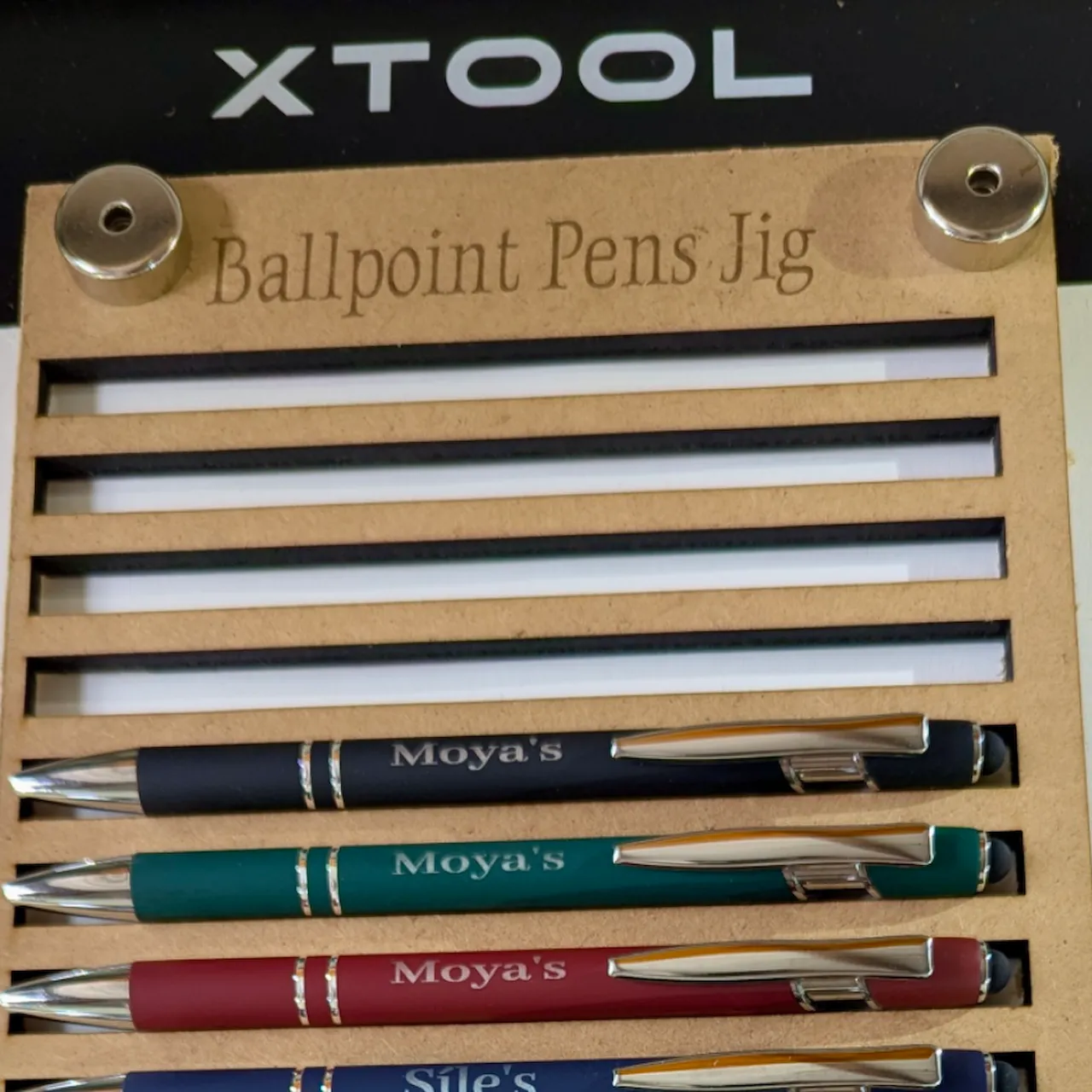

These were my first pen engravings. They were all done in the jig (credit / shoutout to Samcraft on YouTube for the jig file) but only 3 or less at a time. With the exception of the 'Mark's & Síle's pens the settings are identical for all of them and the only difference with those two is they had 2 passes instead of 1. There was no recommended settings for these pens, but there was for ones that had an LED torch, so I started there and after a lot of testing , these are my preferred settings: Power: 45% speed: 80mm/s passes: 2 You should know that these settings are significantly different to the recommended ones (30%,80mm/s, 1 pass) but I found my settings gave a 'cleaner/brighter' result. Mark.

More Black Stylus Ballpoint Pens With LED Light settings

Same material on xTool M2. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Shop AAPS →

Machine Context

BrandxTool
ModelM2
Laser typeDiode
Wattage10W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialBlack Stylus Ballpoint Pens With LED Light
SupplierxTool
Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @markscreations1960 in Atomm, xTool's community
View the original post →
