Laser Engraving Photo Paper test grid
DiodeCommunity report

Laser Engraving Photo Paper

black

Shared by @kschaefer528 on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Bitmap · Flat Surface
Power
40
Speed
80
DPI
300
Passes
1
Thickness
0.5mm
dot time
60 µs

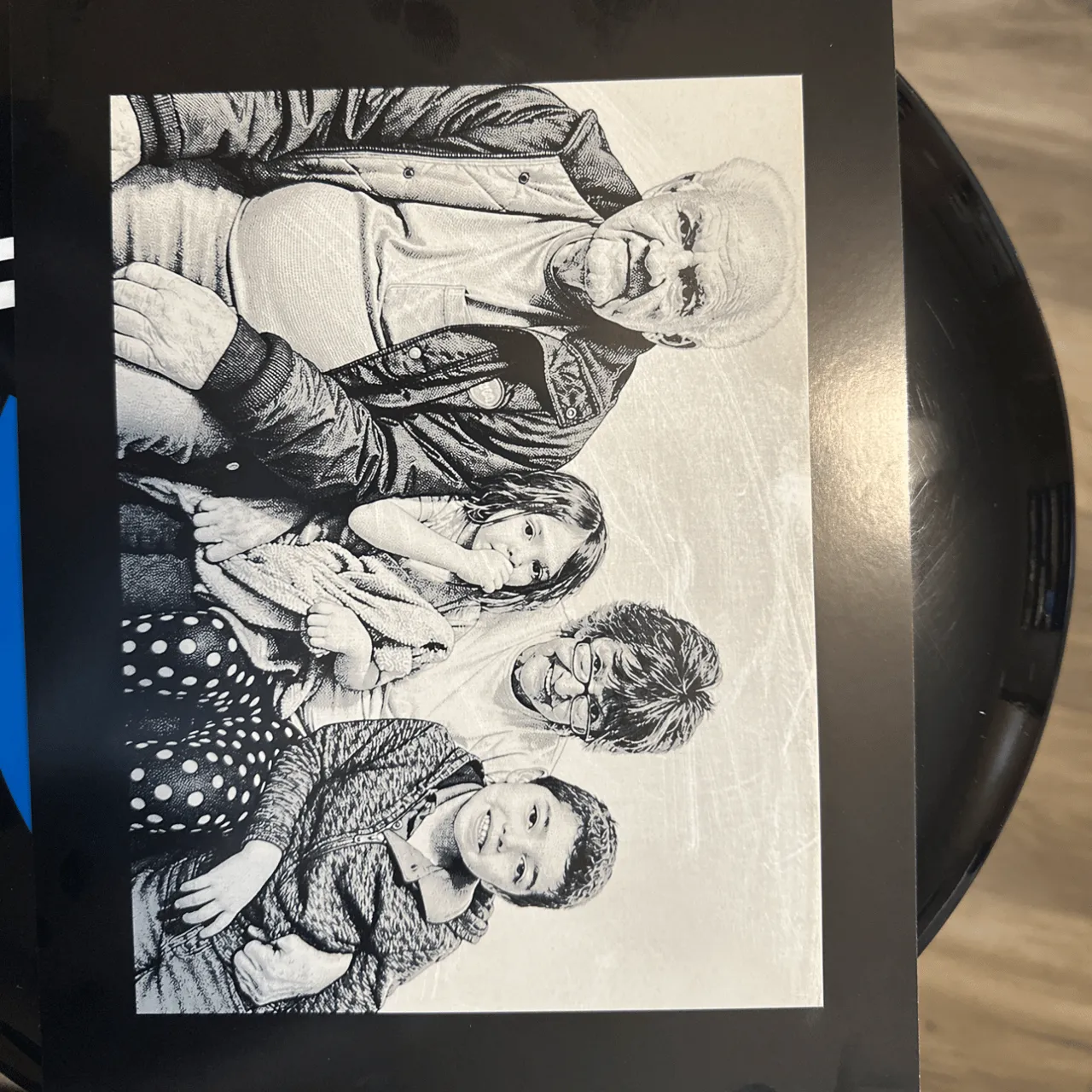

Black photo paper, took about 40 mins, ignore the scratching on the white part of the top of the photo it was my first time and I tried to wipe off my finger prints and made it way worse, other than that I am really happy with how it turned out. used the xtool AI to turn it into a fine line engraving file and then I inverted the image.

More Laser Engraving Photo Paper settings

Same material on xTool F2 Ultra. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)
0.5mm · P40 S80 · this oneP40 S?P30 S4000P50 S6000P20 S3000P20 S3000P12 S?

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
Shop xTool lasers and UV printers

Every xTool machine in this library, with our discount code.

Code ERIK100: $100 off $1,699+ (or ERIK80: $80 off $999+)

Shop xTool →

Machine Context

BrandxTool
ModelF2 Ultra
Laser typeDiode
Wattage40W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialLaser Engraving Photo Paper
Color / Finishblack
Size0.5mm
SupplierxTool
Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @kschaefer528 in Atomm, xTool's community
View the original post →
