Cut · Flat Surface 2Engrave · Flat Surface 2Score · Flat Surface 1
1/8"(3mm) Pastel Blue Acrylic test grid
DiodeCommunity report

1/8"(3mm) Pastel Blue Acrylic

blue

Shared by @andie.letourneau on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Cut · Vector · Flat Surface
Power
95
Speed
3
Passes
4
Thickness
3mm

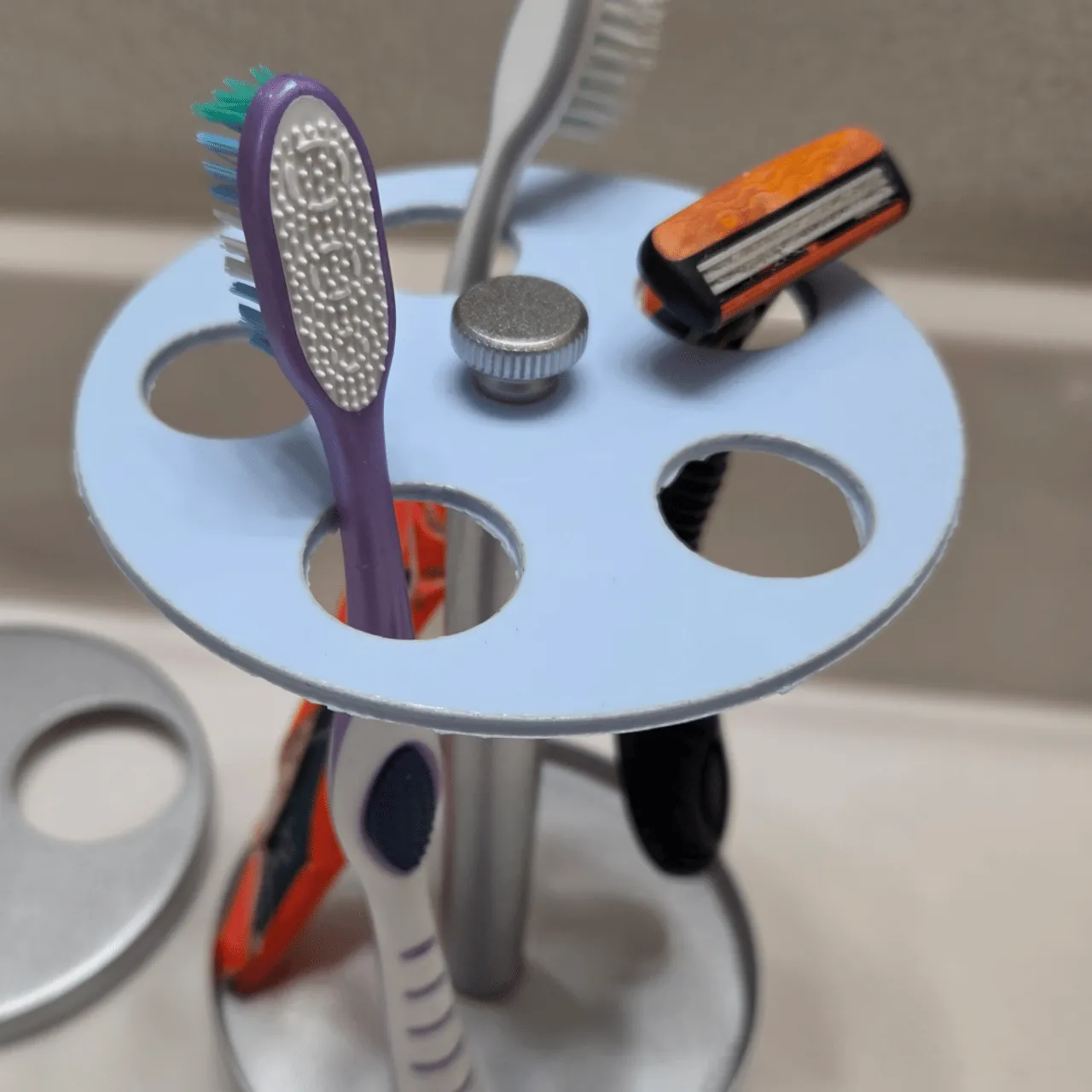

Pastel blue Acrylic toothbrush holder top created to replace the original top which had holes that were too big. Leave the brown paper on the acrylic or it will not be able to cut it because the color of the diode laser is very close to the color of the acrylic and it needs the paper to reduce bouncing off of the laser light. The cut will look wider than what you usually see on darker acrylic. Multiple passes are also required to ensure that it will cut all the way through. Keep an eye on it while it's cutting because the paper is flammable and it may burn.

More 1/8"(3mm) Pastel Blue Acrylic settings

Same material on xTool S1. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)
3mm · P70 S1003mm · P70 S100
Cut by thickness
3mm · P95 S3 · this one3mm · P95 S3

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Shop AAPS →

Machine Context

BrandxTool
ModelS1
Laser typeDiode
Wattage20W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/8"(3mm) Pastel Blue Acrylic
Color / Finishblue
Size3mm
SupplierxTool
Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @andie.letourneau in Atomm, xTool's community
