Pick your machine

16 machines have 1/4"(6mm) Basswood Plywood settings

Cut · Flat Surface 6 Engrave · Flat Surface 11 Score · Flat Surface 3

1/4"(6mm) Basswood Plywood test grid

DiodeCommunity report

1/4"(6mm) Basswood Plywood

white

Shared by @steffi_jaskulski on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Cut · Vector · Flat Surface

Power

100

Speed

6

Passes

1

Thickness

4mm

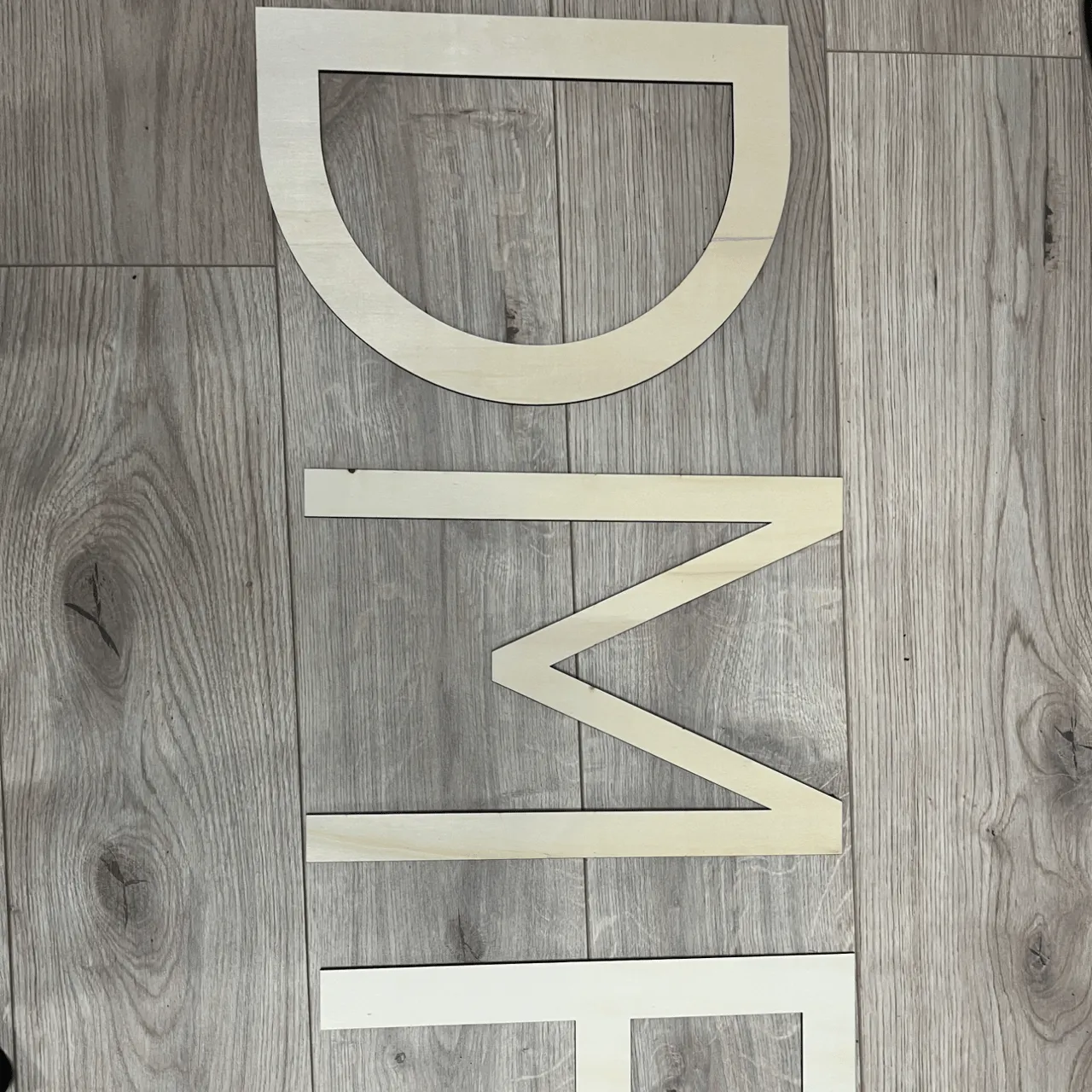

Bei dem Material handelt es sich um Bastel-Sperrholz Pappel aus dem Baumarkt. Größe 297 x 420 x 4mm (DIN A 3). Die aufgesetzten Ränder habe ich zwei mal gelasert, sodass wir eine Höhe von 8mm haben. Für de Schnitt habe ich unter das Holz die Abstandsleisten gelegt.

More 1/4"(6mm) Basswood Plywood settings

Same material on xTool S1. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

6mm · P30 S200 3mm · P30 S250 6mm · P41 S250 6mm · P30 S180 6mm · P34 S250 6mm · P80 S200 6mm · P40 S150 6mm · P20 S250 6mm · P60 S300 6mm · P25 S250

Cut by thickness

4mm · P100 S6 · this one6mm · P96 S6 6mm · P100 S8 6mm · P100 S5 6mm · P100 S2 6mm · P100 S3

Score

6mm · P20 S100 6mm · P55 S40 6mm · P50 S100

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Machine Context

BrandxTool

ModelS1

Laser typeDiode

Wattage20W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/4"(6mm) Basswood Plywood

Color / Finishwhite

BrandBaumarkt

Size4mm

SupplierxTool

Buy this material →

Buy from xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type

Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @steffi_jaskulski in Atomm, xTool's community

View the original post →
