Pick your machine

16 machines have 1/64"(0.2mm) Purple Coated Aluminum Alloy settings

12 settings

Engrave · Flat Surface 6 Score · Flat Surface 3

DiodeVendor

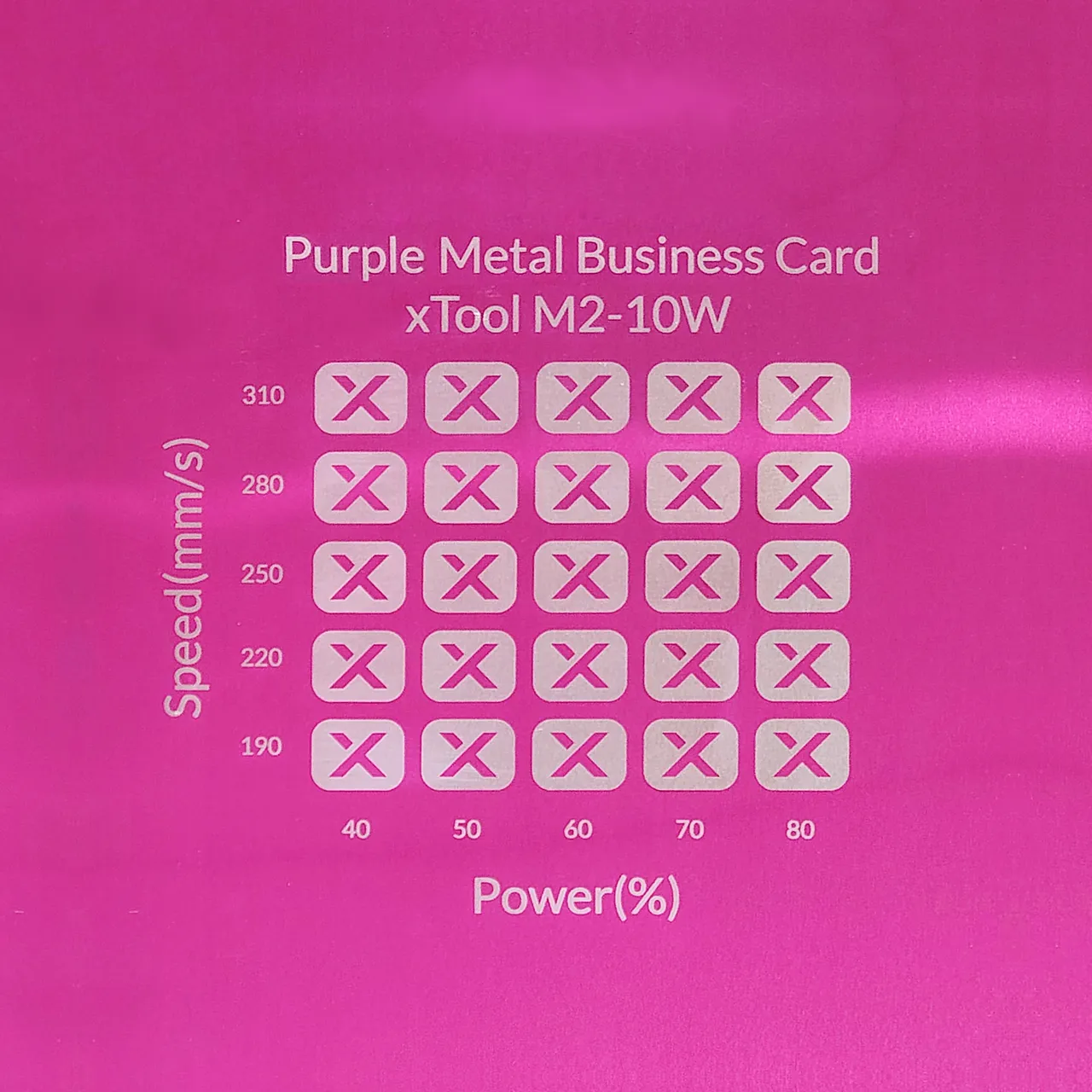

1/64"(0.2mm) Purple Coated Aluminum Alloy

Shared by xTool (vendor)

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface

Power

Speed

250

LPC

200

Passes

Thickness

0.2mm

More 1/64"(0.2mm) Purple Coated Aluminum Alloy settings

Same material on xTool M2. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

0.2mm · P60 S250 · this one0.2mm · P35 S300 0.2mm · P55 S270 0.2mm · P60 S200 0.2mm · P60 S200 0.2mm · P30 S250

Score

0.2mm · P80 S120 0.2mm · P55 S120 0.2mm · P70 S140

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Machine Context

BrandxTool

ModelM2

Same settings onS1

Also works inBatch (same design), Batch (variable data), Conveyor Batch, Embossment, Jig

Laser typeDiode

Wattage10W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/64"(0.2mm) Purple Coated Aluminum Alloy

BrandxTool

Size0.2mm

SupplierxTool

Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type

Vendor

Shared from a supplier or manufacturer reference. Useful for context, but not proof it will match your machine or material.

Source

xTool material library

xTool's tested settings, shared here with xTool's permission.
