Cut · Flat Surface 2Engrave · Flat Surface 6Score · Flat Surface 3

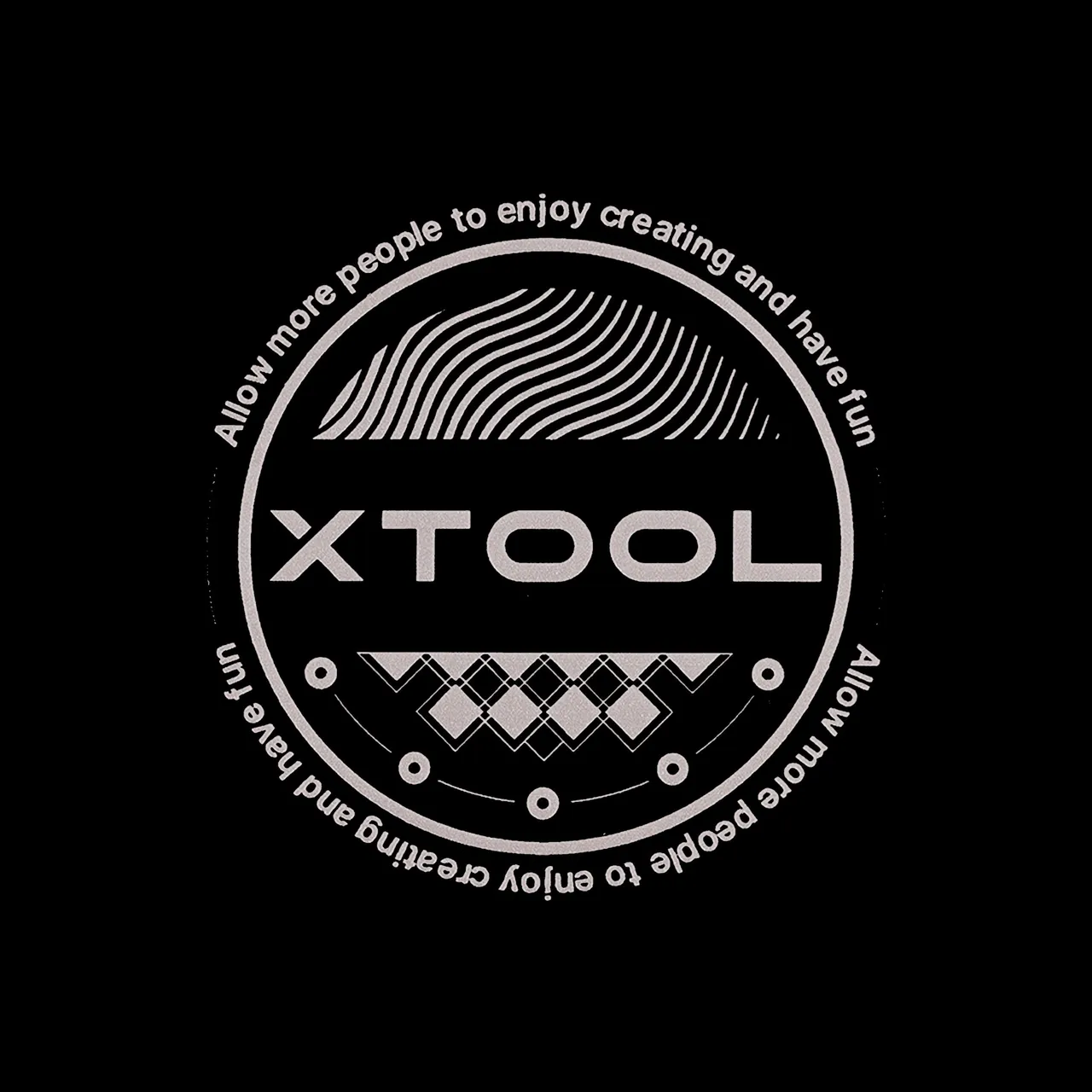

13/64"(5mm) Black Acrylic test grid
DiodeVendor

13/64"(5mm) Black Acrylic

Shared by xTool (vendor)

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface
Power
60
Speed
250
LPC
200
Passes
1
Thickness
5mm

More 13/64"(5mm) Black Acrylic settings

Same material on xTool M2. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)
5mm · P60 S250 · this one5mm · P60 S3005mm · P40 S2005mm · P90 S1505mm · P35 S2405mm · P35 S285

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
Shop xTool lasers and UV printers

Every xTool machine in this library, with our discount code.

Code ERIK100: $100 off $1,699+ (or ERIK80: $80 off $999+)

Shop xTool →

Machine Context

BrandxTool
ModelM2
Same settings onS1
Also works inBatch (same design), Batch (variable data), Conveyor Batch, Embossment, Jig
Laser typeDiode
Wattage10W

Compare against your own machine before treating these as a starting point.

Material Details

Material13/64"(5mm) Black Acrylic
BrandxTool
Size5mm
SupplierxTool
Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Vendor

Shared from a supplier or manufacturer reference. Useful for context, but not proof it will match your machine or material.

Source

xTool material library

xTool's tested settings, shared here with xTool's permission.
