Pick your machine

16 machines have Orange Laser Engraving Rubber Sheet settings

Engrave · Flat Surface 6 Score · Flat Surface 2

Orange Laser Engraving Rubber Sheet test grid

DiodeCommunity report

Orange Laser Engraving Rubber Sheet

orange

Shared by @brandy_zachry on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface

Power

100

Speed

40

LPC

200

Passes

2

Thickness

2.3mm

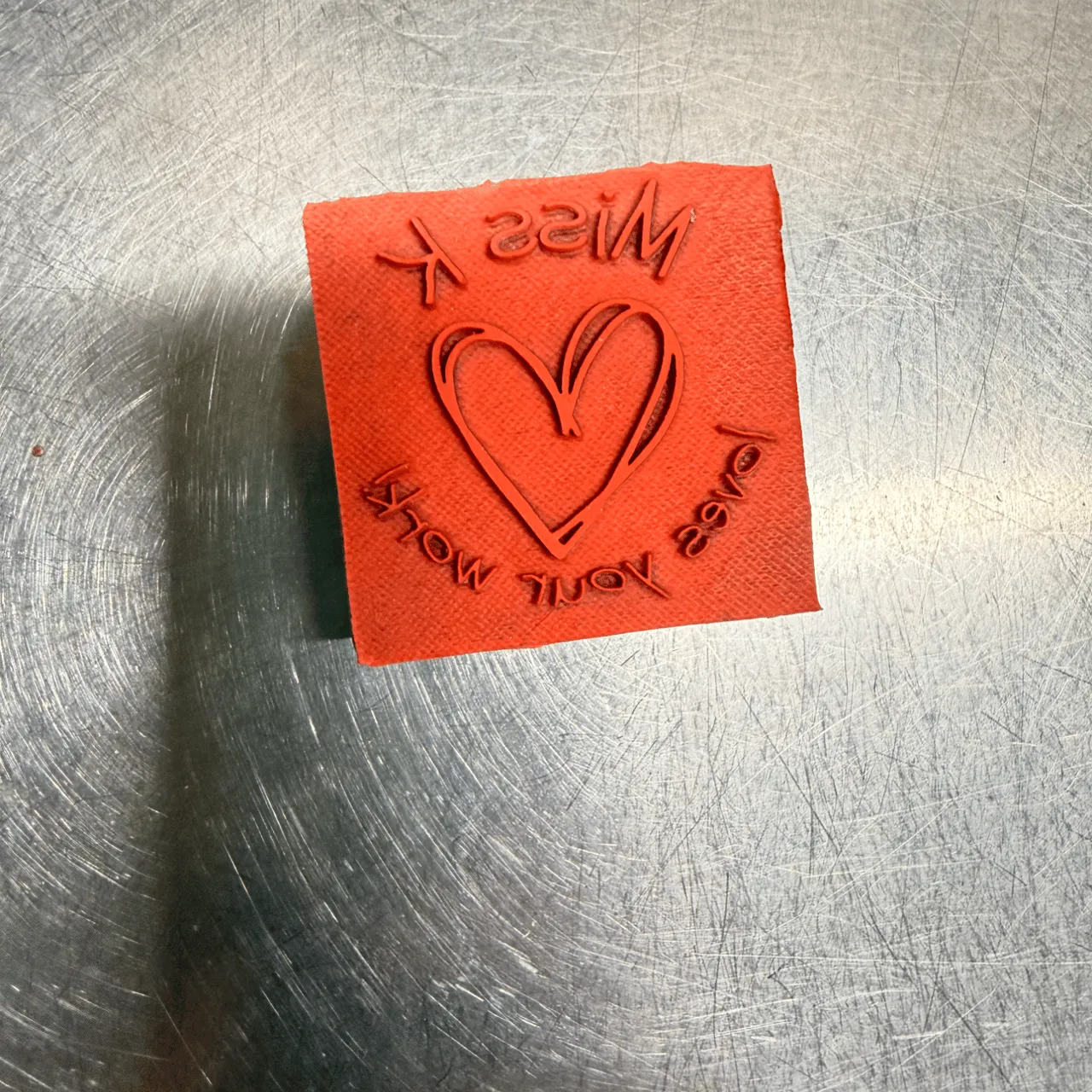

Love the end results considering my first stamp to make. Makes a lot of dust, make sure your vented well, took an about an hour to make one stamp. Might could get away with one pass of engraving and add extra pass on cutting. I believe I had may rubber turned on the wrong side.

More Orange Laser Engraving Rubber Sheet settings

Same material on xTool M2. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

2.3mm · P100 S40 · this one10mm · P76 S59 2.3mm · P70 S150 2.3mm · P25 S120 2.3mm · P80 S90 2.3mm · P25 S150

Score

2.3mm · P60 S75 2.3mm · P20 S55

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Machine Context

BrandxTool

ModelM2

Laser typeDiode

Wattage20W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialOrange Laser Engraving Rubber Sheet

Color / Finishorange

Size2.3mm

SupplierxTool

Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type

Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @brandy_zachry in Atomm, xTool's community

View the original post →
