Emboss · Embossment 1Engrave · Flat Surface 1
Pine Wood test grid
DiodeCommunity report

Pine Wood

brown

Shared by @rodoupk on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface
Power
80
Speed
160
LPC
140
Passes
1
Thickness
10mm
defocus
3 mm

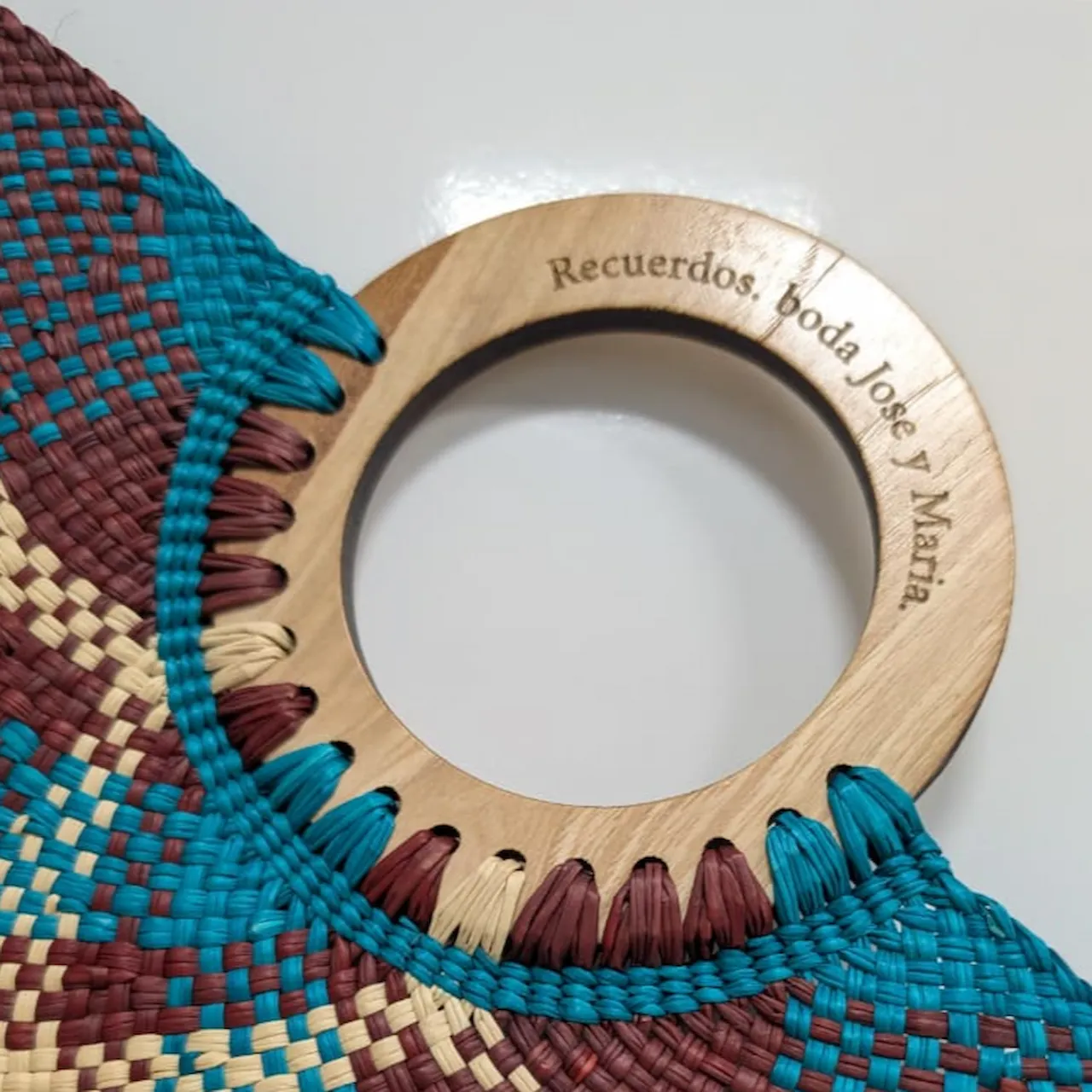

Grabado en sutil relieve sin manchas en madera tipo Pino beige, condidero que en otras maderas tambien podria funcionar, en mi casu utilice la grabadora laser Xtool F2. opcion lineas por centimetro: 140 Unidireccional. Angulo de grabado fijo en 0. Activar trazado de contorno.

More Pine Wood settings

Same material on xTool F2. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)
10mm · P80 S160 · this one

Community Feedback

No votes yet — be the first to report how these settings worked.
