DiodeCommunity report
Plywood
Shared by @chandrabatts on Atomm
Important safety notice
Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.
Laser Settings
Engrave · Bitmap · Flat SurfacePower
40
Speed
90
LPC
150
Passes
1
Material:
I used plywood, smooth-sanded, about 3–4mm thick. It takes detail well but can produce some uneven dark spots because of the glue layers inside.
Machine:
xTool D1 Pro 20W diode laser.
Processing Type:

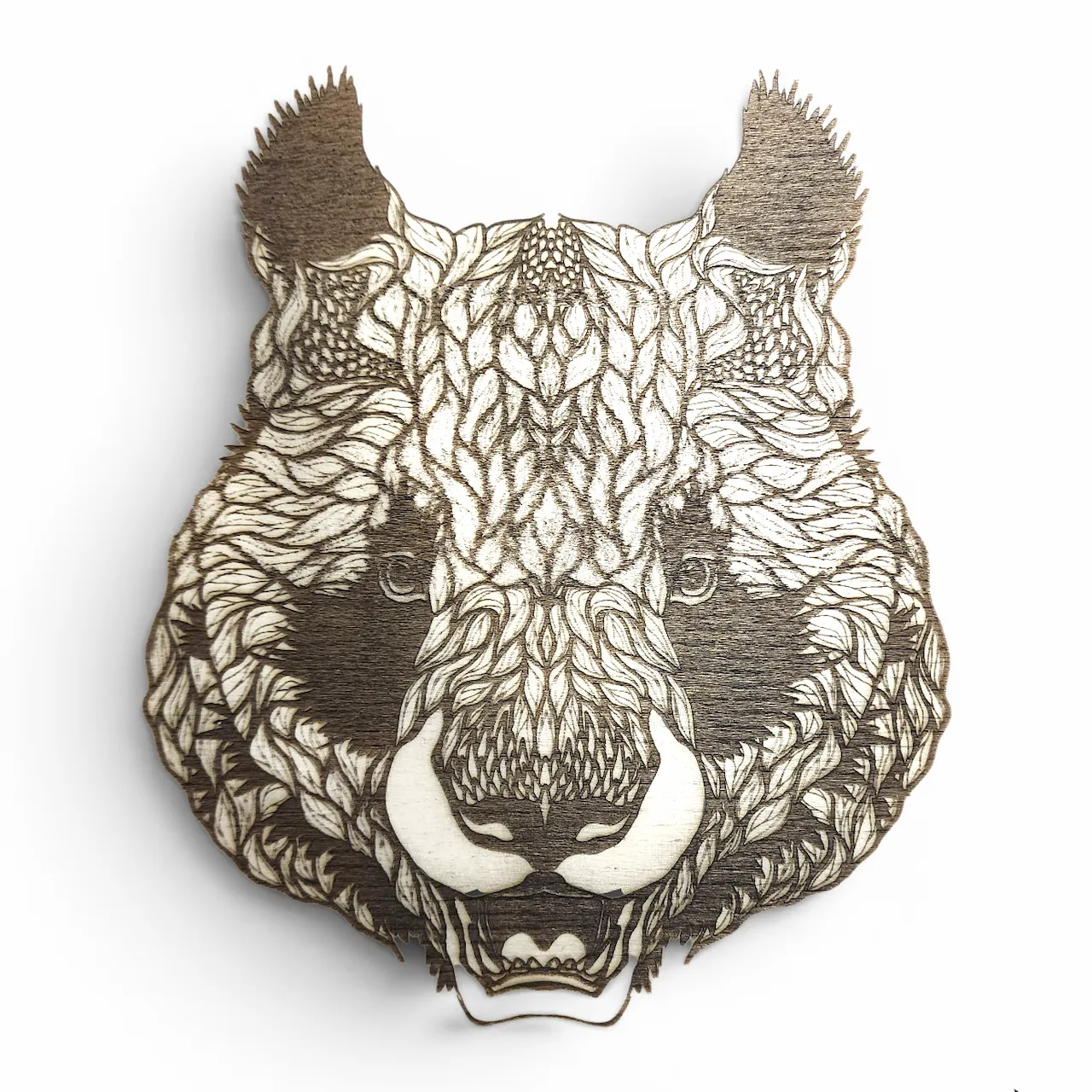

Engraving (no cutting). This was a detailed line-art engraving of a bear illustration.
Final Result:
The engraving came out crisp with strong contrast. The plywood’s grain added a natural texture to the fur lines, and the 20W diode had no trouble capturing the fine detail. Some areas engraved slightly darker due to internal glue pockets, but overall the result was clean, sharp, and visually striking.
Community Feedback
No votes yet — be the first to report how these settings worked.
Export
xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).
Sponsored
All American Print Supply
DTF and UV printers, supplies and xTool machines.
Code FOUNDRY: 5% off, machines included
Shop AAPS →Machine Context
BrandxTool
ModelD1 Pro
Laser typeDiode
Wattage20W
Compare against your own machine before treating these as a starting point.
Material Details
MaterialPlywood
Shop machine — xTool →
Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)
Provenance
Source type
Community report
Shared by a maker in the community. Helpful for context, but not verified for every setup.
