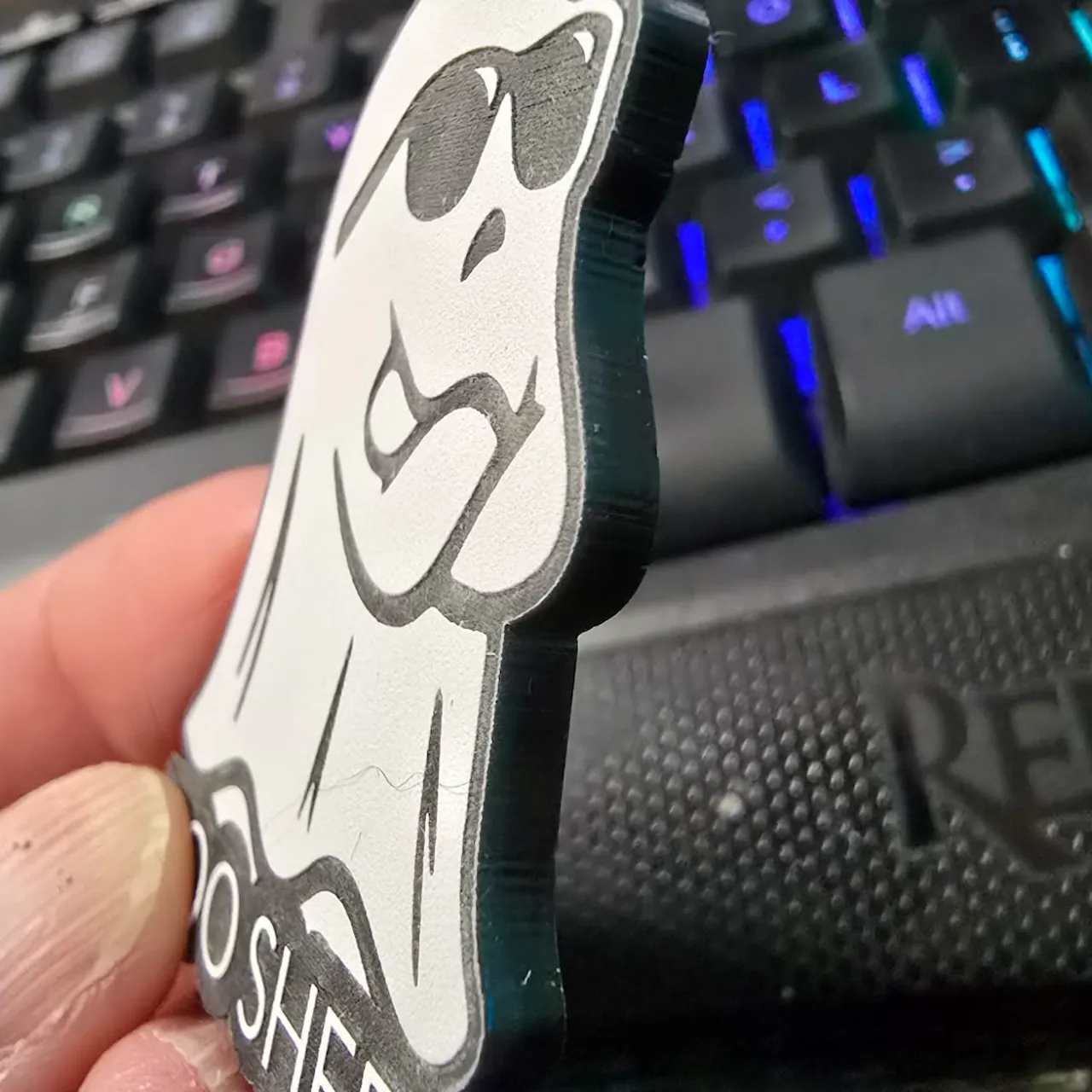

1/8"(3mm) White to Black Two-Tone Acrylic test grid

CO2Community report

1/8"(3mm) White to Black Two-Tone Acrylic

black

Shared by @maryfgz on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Cut · Vector · Honeycomb Panel

Power

60

Speed

20

Passes

2

Thickness

3mm

I do a lower power then suggested but two passes so the white doesn't get any burn marks. Needs to be cleaned after due to the dust from the engraving but there are not burn marks.

More 1/8"(3mm) White to Black Two-Tone Acrylic settings

Same material on xTool P2S. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

3mm · P15 S400 3mm · P25 S400 3mm · P7 S500 3mm · P5 S500

Cut by thickness

3mm · P60 S20 · this one3mm · P80 S20

Score

3mm · P10 S200 3mm · P10 S150

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Shop xTool lasers and UV printers

Every xTool machine in this library, with our discount code.

Code ERIK100: $100 off $1,699+ (or ERIK80: $80 off $999+)

Machine Context

BrandxTool

ModelP2S

Laser typeCO2

Wattage55W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/8"(3mm) White to Black Two-Tone Acrylic

Color / Finishblack

Size3mm

SupplierxTool

Buy this material →

Buy from xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type

Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @maryfgz in Atomm, xTool's community

View the original post →
