1/8"(3mm) Black Acrylic test grid

UVCommunity report

1/8"(3mm) Black Acrylic

Shared by @1937crosby on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Cut · Vector · Flat Surface

Power

100

Speed

7

Passes

23

Thickness

3mm

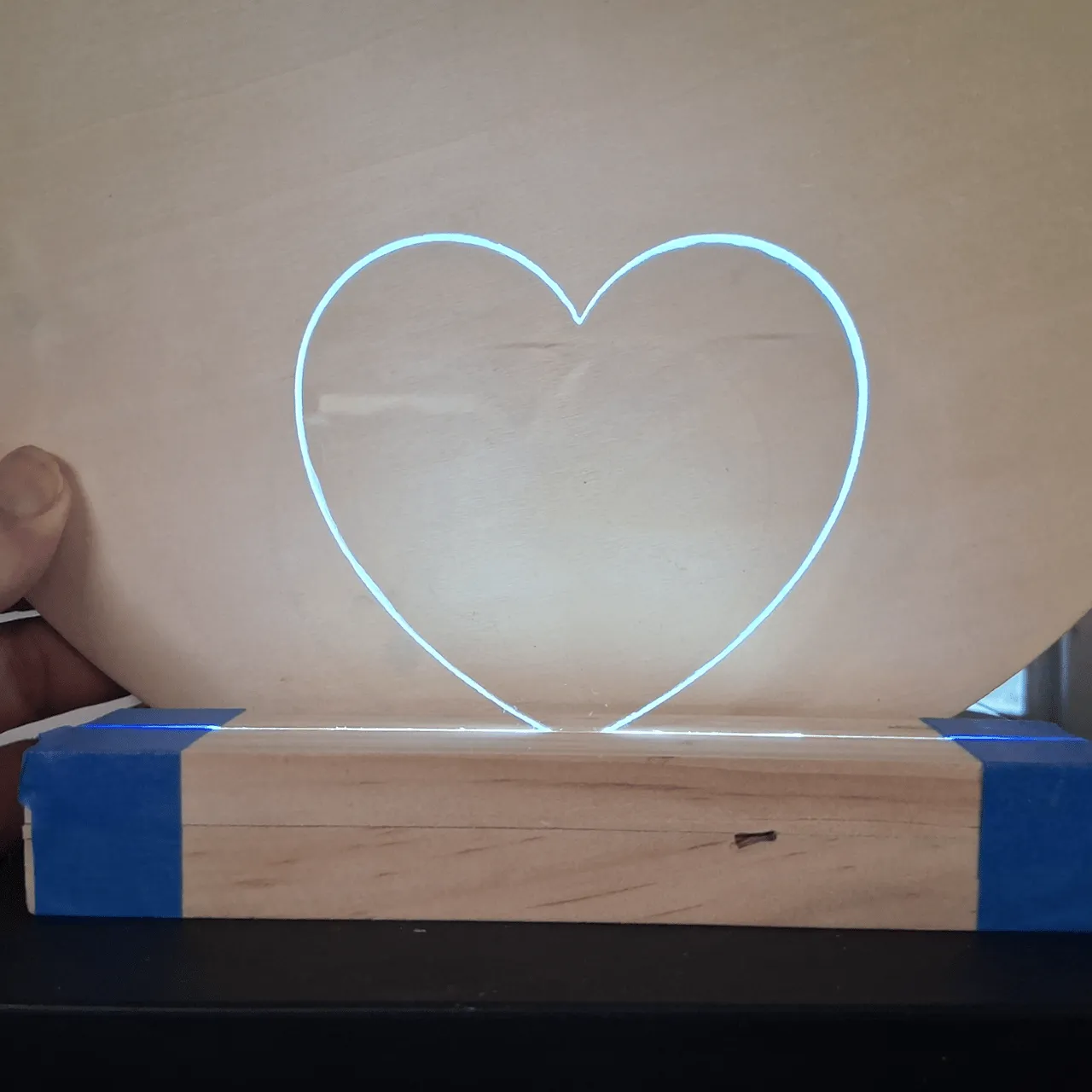

I put painters tape on the back side of the clear sheet and then took and put the shape i wanted and then combined the two so it would make it one so I could cut it out on the F2 Ultra UV.

More 1/8"(3mm) Black Acrylic settings

Same material on xTool F2 Ultra UV. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

3mm · P30 S80 3mm · P30 S80 3mm · P75 S?3mm · P80 S2500

Cut by thickness

3mm · P100 S7 · this one3mm · P100 S200 3mm · P100 S3

Score

3mm · P90 S1000

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Machine Context

BrandxTool

ModelF2 Ultra UV

Laser typeUV

Wattage5W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/8"(3mm) Black Acrylic

Size3mm

SupplierxTool
