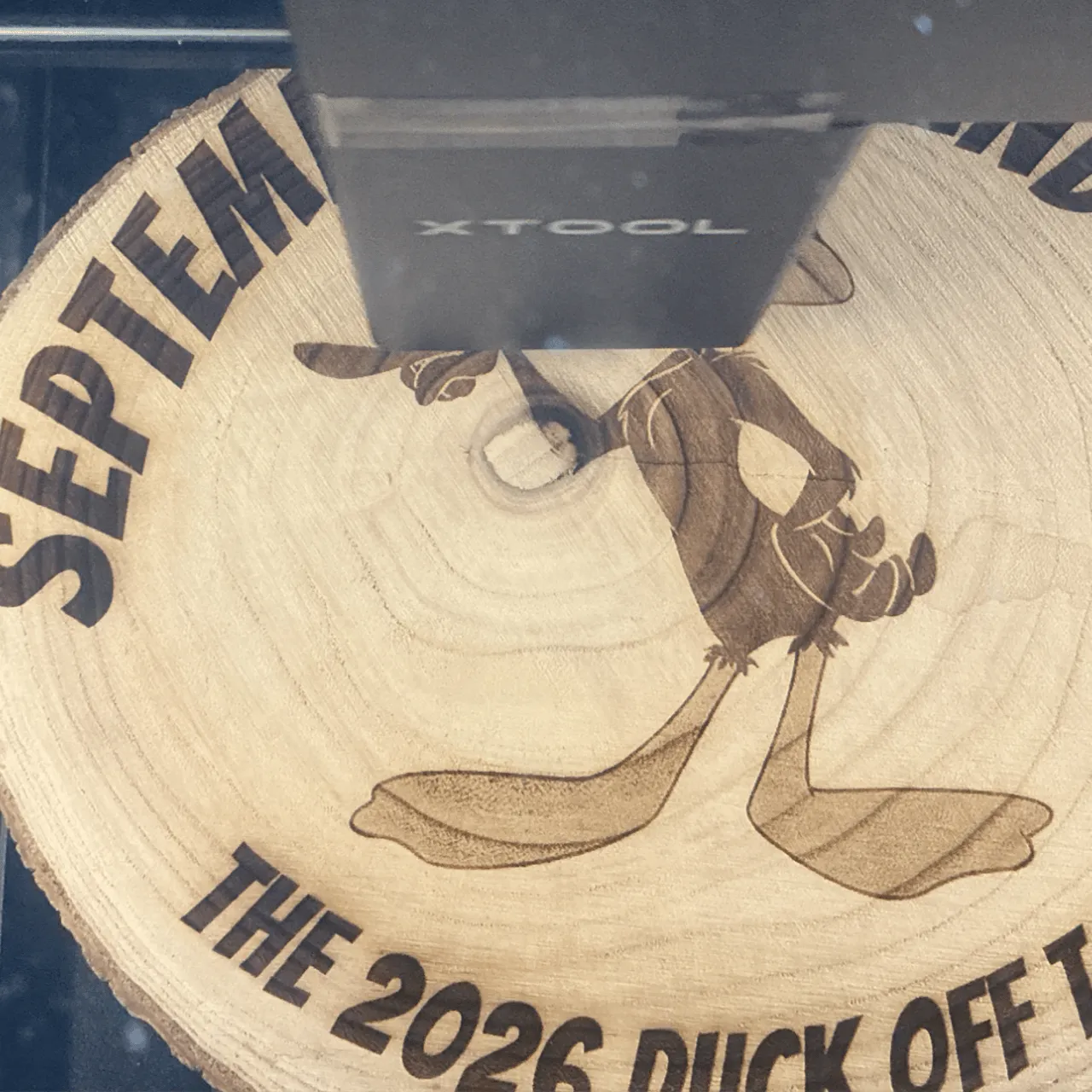

Pine Wood test grid
CO2Community report

Pine Wood

brown

Shared by @STEVIER on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface
Power
25
Speed
400
LPC
120
Passes
3
Thickness
21mm
defocus
8 mm
This is my first real project with my new P2S Laser...it's an amazing laser...and highly recommended for ease of use...!!! This is a log plaque that will appear in photos on our group 'Family September Weekend Holiday' just outside Aberdeen in Scotland. This took about an hour and 45 minutes...but I wanted multiple passes to ensure no scorching of the wood. Overall Im really pleased with the output...and will be adding a coat or two of matt clear coat spray for protection.

More Pine Wood settings

Same material on xTool P2S. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)
21mm · P25 S400 · this one10mm · P15 S40020mm · P30 S50010mm · P12 S360

Community Feedback

No votes yet — be the first to report how these settings worked.
