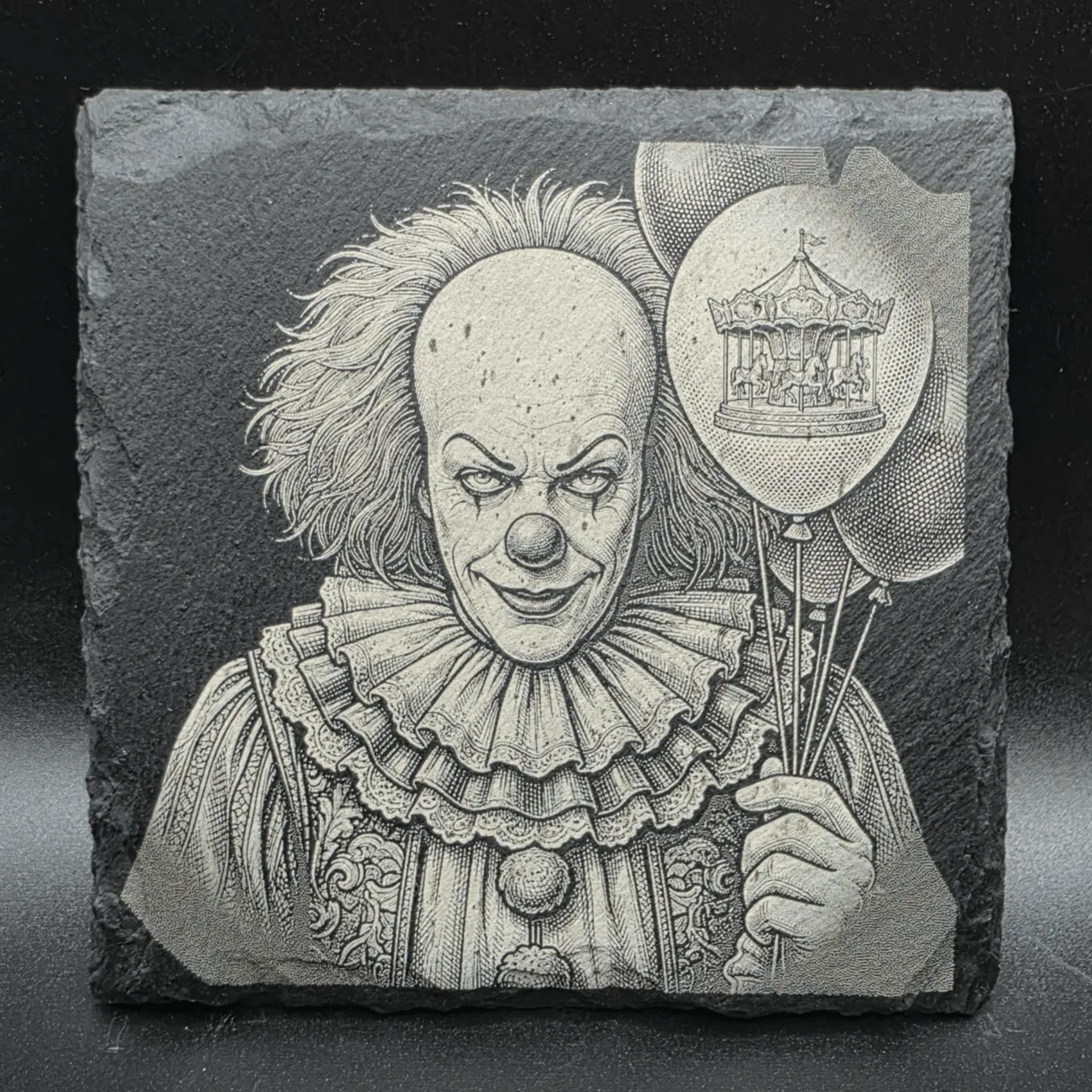

Square Rock Coaster test grid

Fiber/InfraredCommunity report

Square Rock Coaster

black

Shared by @firefrk466 on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Bitmap · Flat Surface

Power

100

Speed

80

DPI

380

Passes

1

Thickness

5mm

dot time

800 µs

clean slate, apply one coat of flat black paint allow at least 30 minutes to dry, upload and invert image to size and engrave

More Square Rock Coaster settings

Same material on xTool F2. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

5mm · P100 S80 · this one5mm · P70 S600 5mm · P30 S80 5mm · P40 S80 5mm · P100 S80 5mm · P40 S?5mm · P60 S?5mm · P100 S80 5mm · P100 S80 5mm · P50 S80 5mm · P60 S600 5mm · P15 S150 5mm · P20 S150 5mm · P70 S1200

Score

5mm · P85 S300 5mm · P90 S400 5mm · P40 S100 5mm · P40 S150

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Machine Context

BrandxTool

ModelF2

Laser typeFiber/Infrared

Wattage5W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialSquare Rock Coaster

Color / Finishblack

Size5mm

SupplierxTool

Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type

Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @firefrk466 in Atomm, xTool's community

View the original post →
