Pick your machine

17 machines have 1/32"(0.8mm) Black Coated Aluminum Alloy settings

12 settings

Engrave · Flat Surface 10 Score · Flat Surface 4

DiodeCommunity report

1/32"(0.8mm) Black Coated Aluminum Alloy

black

Shared by @dr.kahl on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Bitmap · Flat Surface

Power

Speed

220

LPC

220

Passes

Thickness

1.5mm

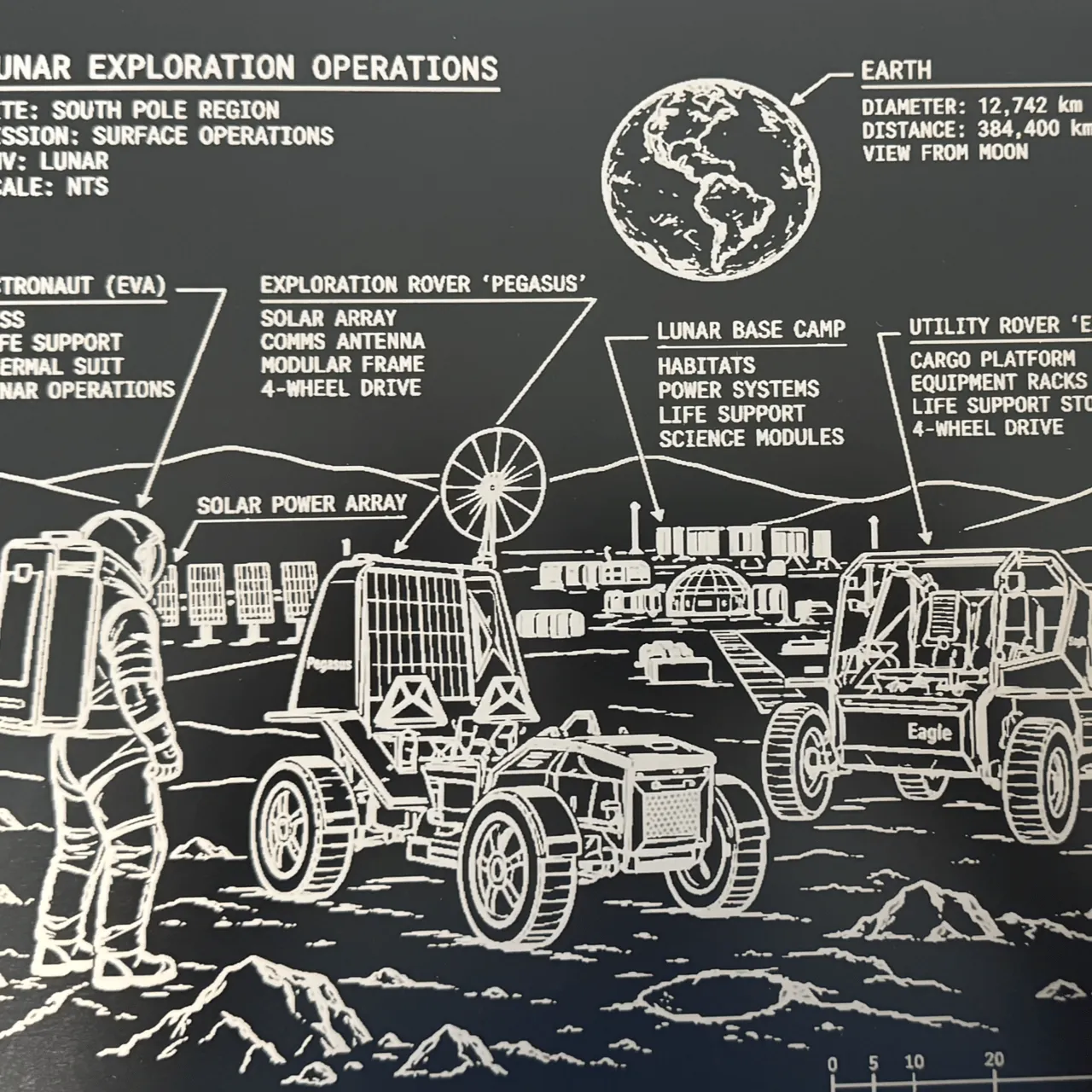

Converted a picture into a white lined image oni black background. Cleaned the image up for engraving on a black anodized aluminum sheet.

More 1/32"(0.8mm) Black Coated Aluminum Alloy settings

Same material on xTool S1. Engrave stays the same regardless of thickness; cut changes with thickness.

Engrave (any thickness)

1.5mm · P35 S220 · this one0.8mm · P21 S360 0.8mm · P60 S300 0.8mm · P20 S140 0.8mm · P15 S140 0.8mm · P10 S180 0.8mm · P30 S300 0.8mm · P20 S200 0.8mm · P30 S200 0.8mm · P60 S240

Score

0.8mm · P28 S150 0.8mm · P50 S50 0.8mm · P40 S60 0.8mm · P40 S75

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Machine Context

BrandxTool

ModelS1

Laser typeDiode

Wattage40W

Compare against your own machine before treating these as a starting point.

Material Details

Material1/32"(0.8mm) Black Coated Aluminum Alloy

Color / Finishblack

Size1.5mm

SupplierxTool

Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type

Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @dr.kahl in Atomm, xTool's community

View the original post →
