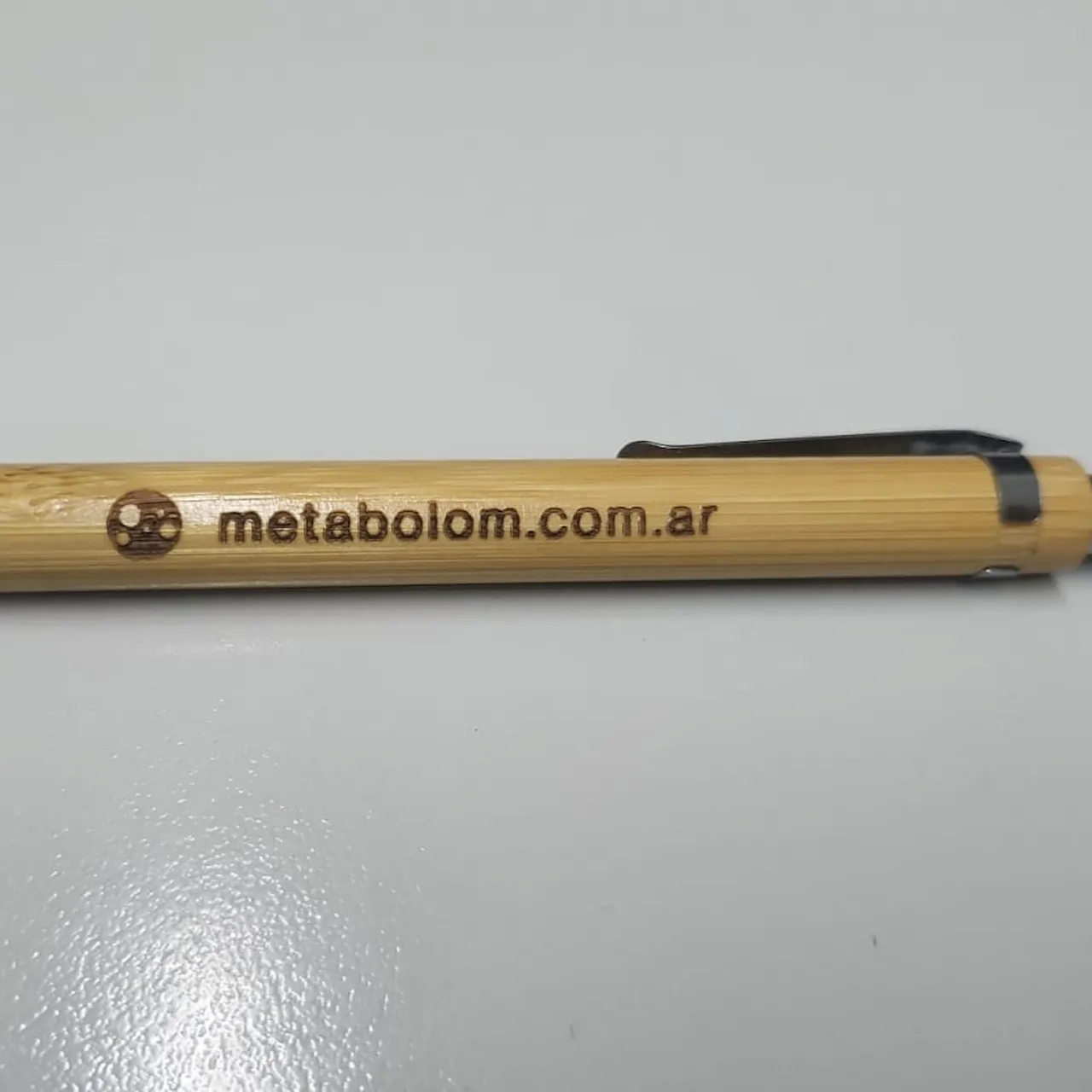

Reusable Pencil Drawing test grid
DiodeCommunity report

Reusable Pencil Drawing

Shared by @nicolasyasbitzky on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Vector · Flat Surface
Power
40
Speed
250
LPC
120
Passes
1
defocus
3 mm
Grabado con F2 ultra dual, laser diodo 40w. El material son las tipicas lapiceras de madera bambu, algunos las llaman eco. El grabado se probón con potencia de 60/50/40 de potencia, encontrando el mejor resultado en 40% y para el logo 35%

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
Shop xTool lasers and UV printers

Every xTool machine in this library, with our discount code.

Code ERIK100: $100 off $1,699+ (or ERIK80: $80 off $999+)

Shop xTool →

Machine Context

BrandxTool
ModelF2 Ultra
Laser typeDiode
Wattage40W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialReusable Pencil Drawing
SupplierxTool
Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @nicolasyasbitzky in Atomm, xTool's community
