Engrave · Flat Surface 10Score · Flat Surface 2
Pine Wood test grid
DiodeCommunity report

Pine Wood

Shared by @s.francois50100 on Atomm

Important safety notice

Settings are starting points — always run a test cut on scrap before your final piece. Follow your manufacturer's guidance, wear eye protection, and ensure proper ventilation.

Laser Settings

Engrave · Bitmap · Flat Surface
Power
50
Speed
140
LPC
140
Passes
1
Thickness
15mm

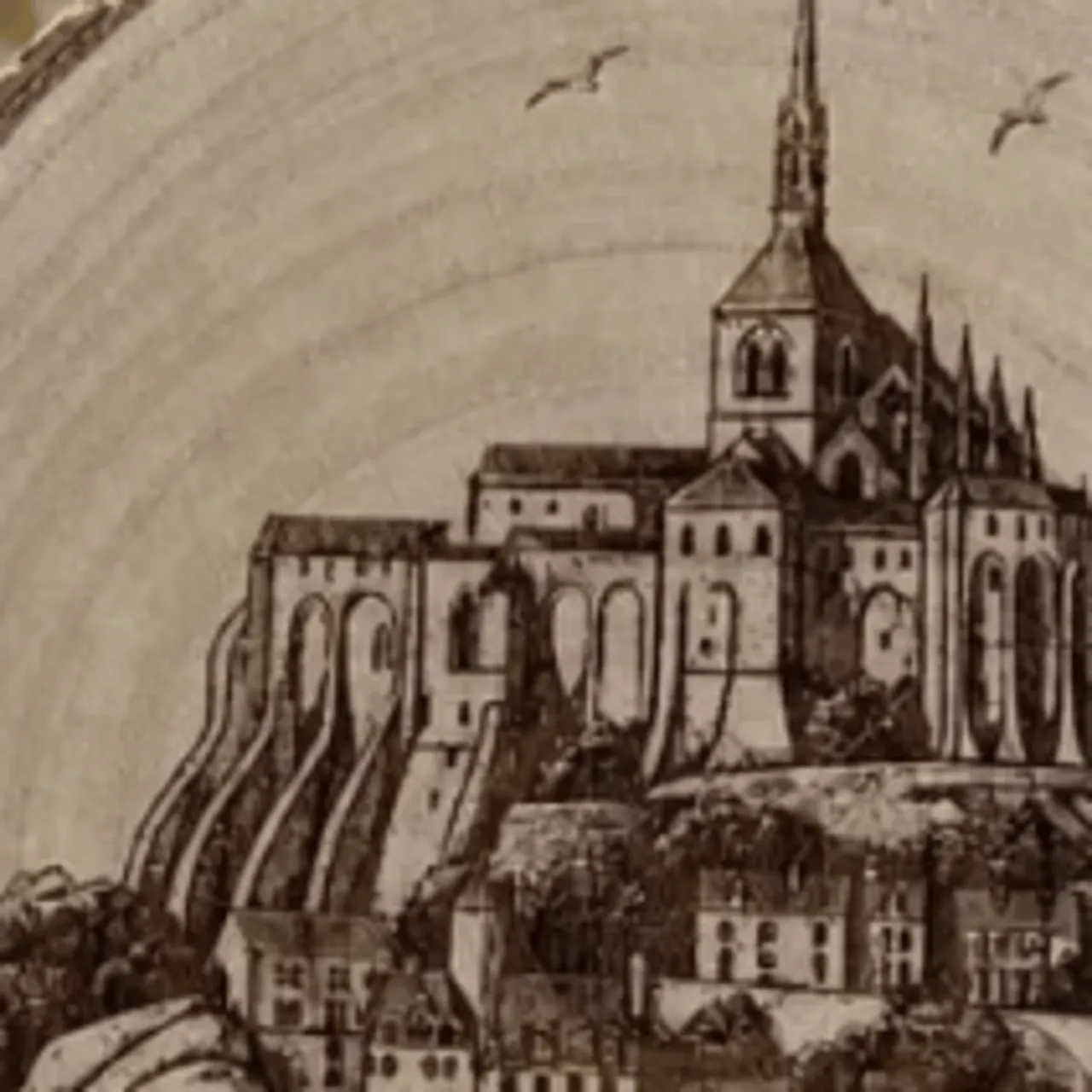

Tranche de rondin de pin naturel avec écorce qui a été poncée au papier de verre grain 120 et nettoyer au pinceau sec pour enlever les résidus de ponçage avant de faire une gravure laser d'image. Prendre des mesures de distance du matériaux à 6 endroits différents pour faire une moyenne des mesures et l'appliquer, cela évite les écarts de couleurs de gravure trop prononcés. Nettoyer au pinceau sec après gravure et appliquer 2 couches de vernis incolore mat en spray.

More Pine Wood settings

Same material on xTool M1 Ultra. Engrave stays the same regardless of thickness; cut changes with thickness.

Community Feedback

No votes yet — be the first to report how these settings worked.

Export

xTool machine: open it straight in xTool Studio, or download a .mxs (Studio → Materials → Import).

Sponsored
All American Print Supply

DTF and UV printers, supplies and xTool machines.

Code FOUNDRY: 5% off, machines included

Shop AAPS →

Machine Context

BrandxTool
ModelM1 Ultra
Laser typeDiode
Wattage10W

Compare against your own machine before treating these as a starting point.

Material Details

MaterialPine Wood
Size15mm
SupplierxTool
Buy this material →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Shop machine — xTool →

Code ERIK100 — $100 off $1,699+ (or ERIK80 — $80 off $999+)

Provenance

Source type
Community report

Shared by a maker in the community. Helpful for context, but not verified for every setup.

Source

Shared by @s.francois50100 in Atomm, xTool's community
